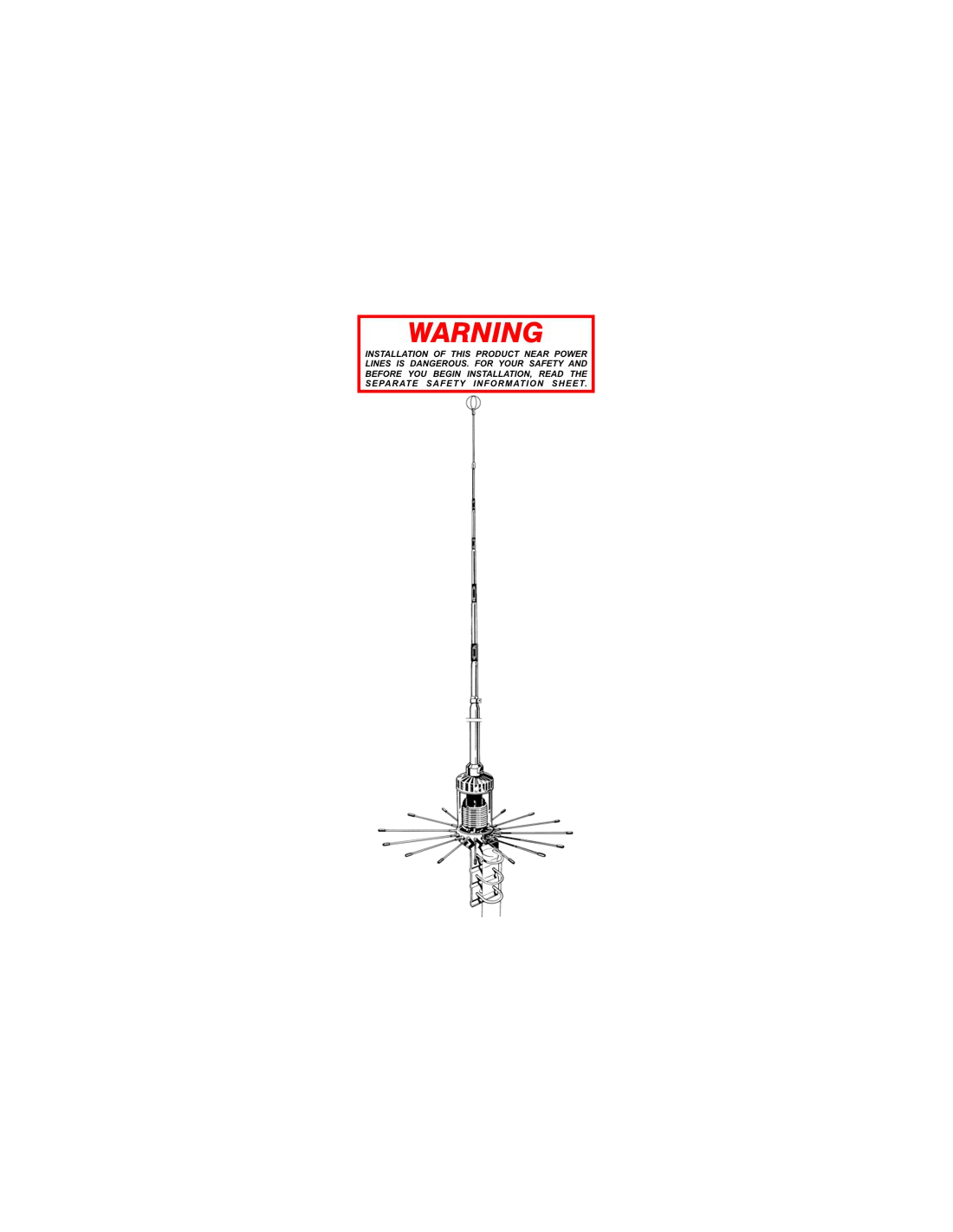

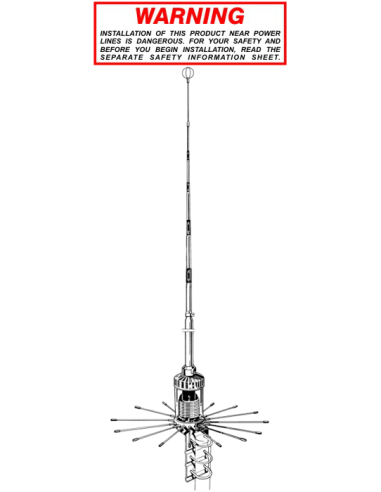

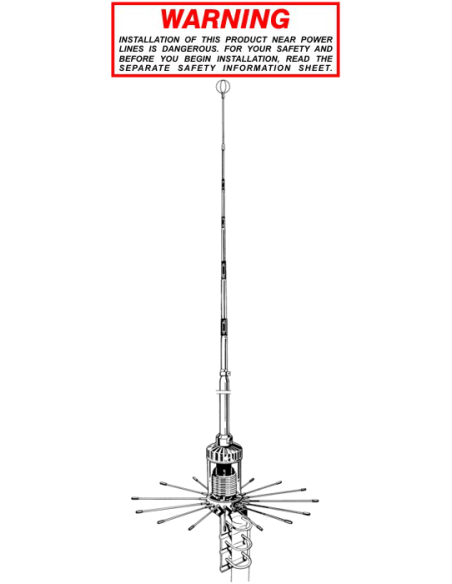

2008 SIRIO
BASE ANTENNA CB

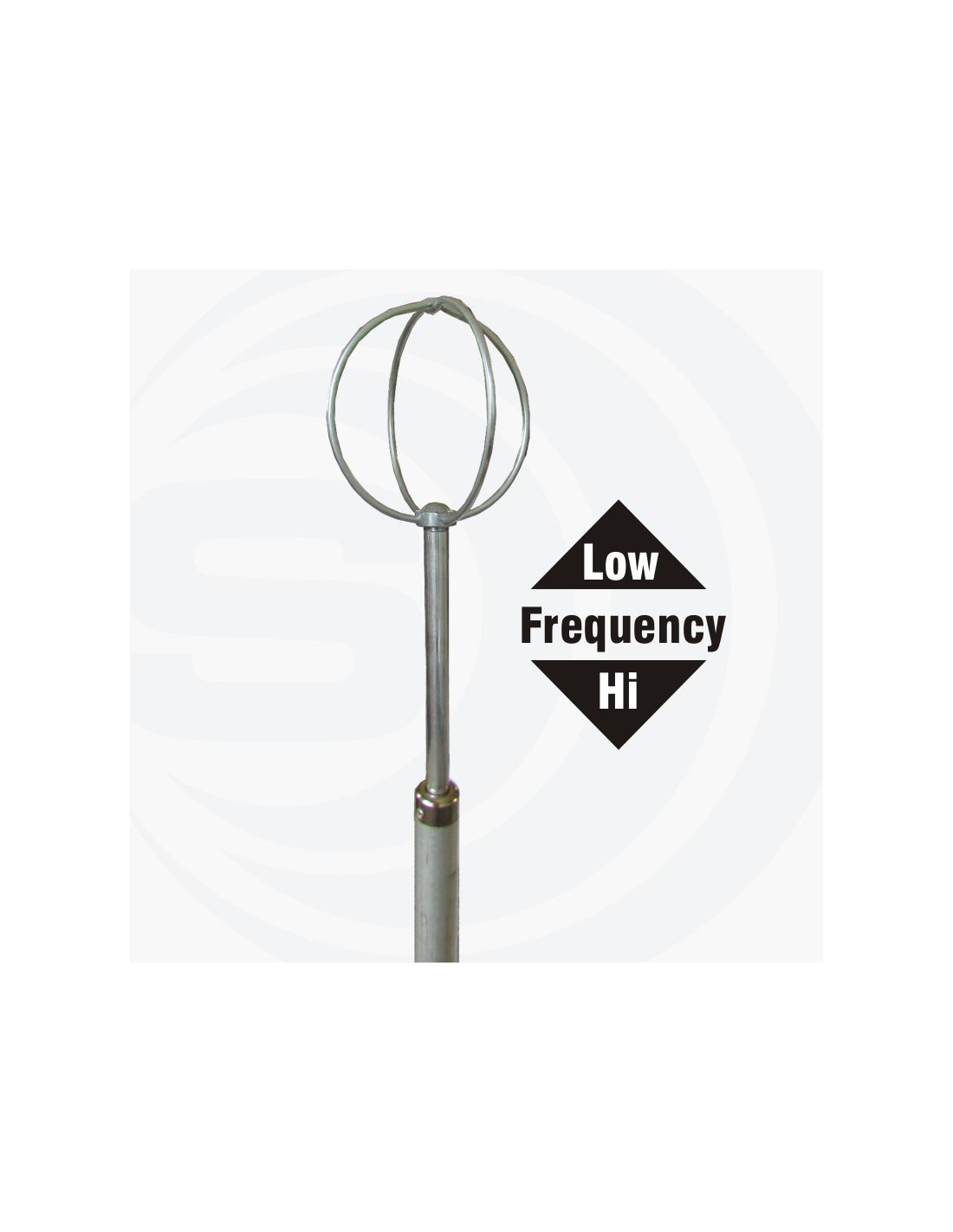

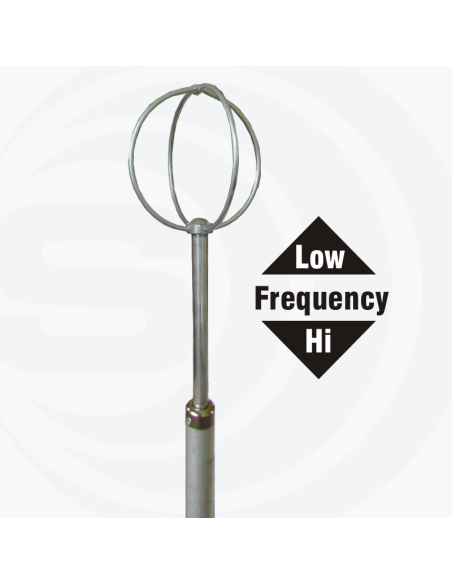

26.4...28.2 MHz Tunable /
5/8 λ /
1.3 dBd, 3.45 dBi /
6100 mm

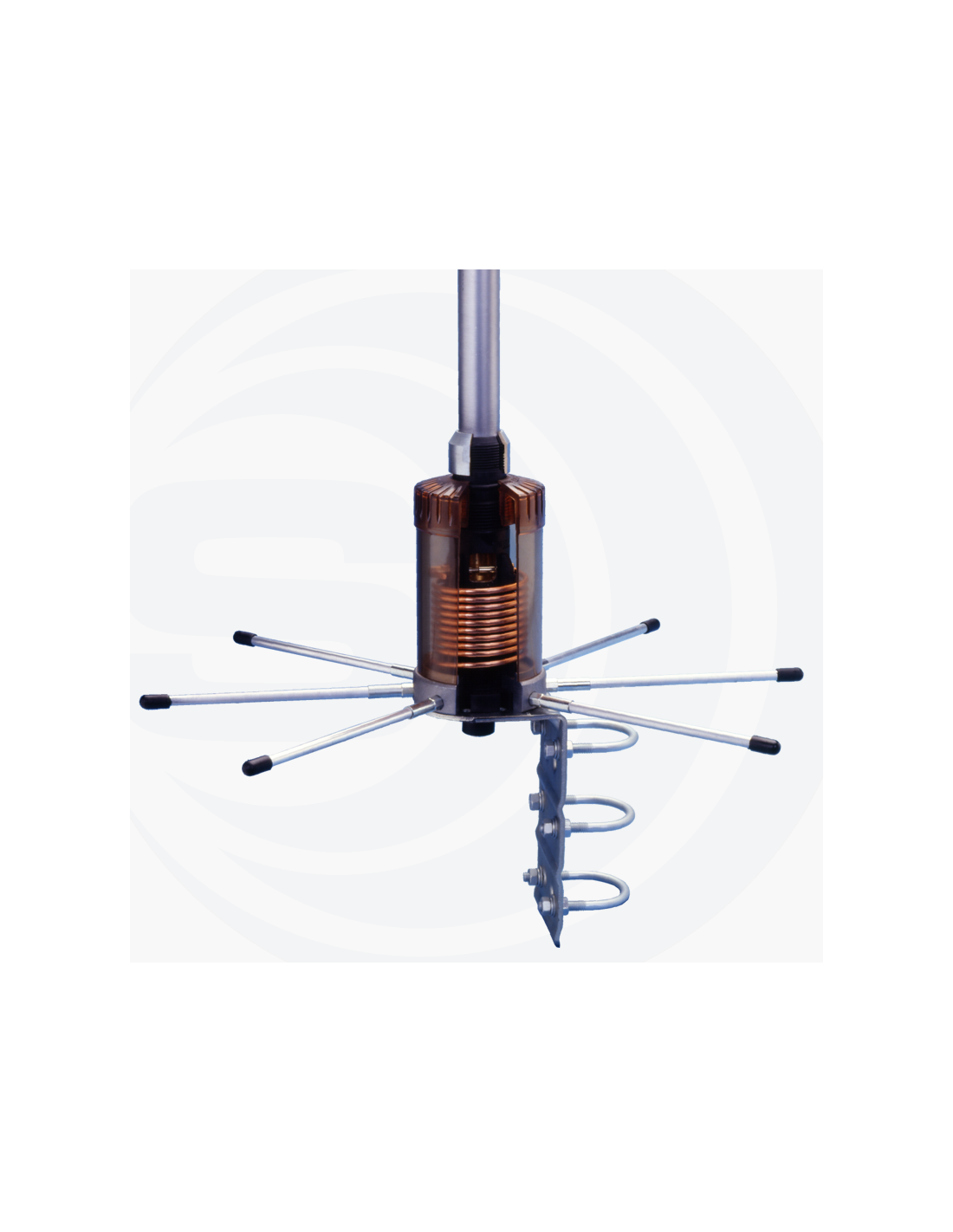

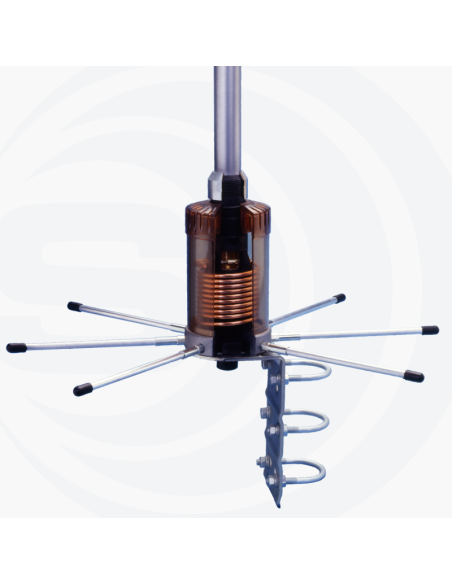

- 8 Radials -
| Type: | 5/8 λ ground plane - 8 Radials |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 26.4 ... 28.2 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 1.3 dBd, 3.45 dBi |
| Bandwidth: |
|
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Connector: | UHF-female (SO-239) |
Mechanical Data:

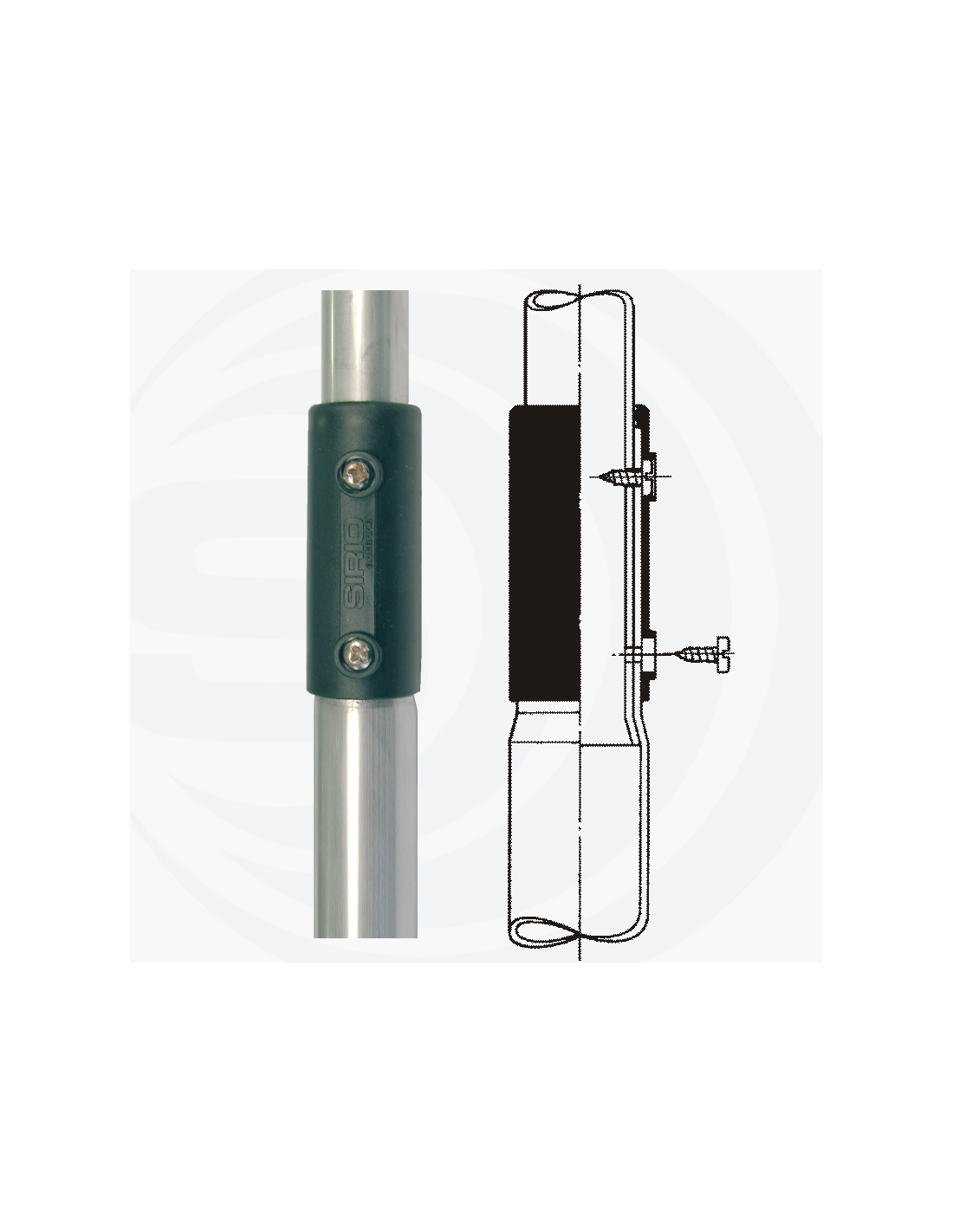

| Materials: | Aluminium, Copper, Brass, Galvanized steel, Nylon |
| Height (approx): | 6100 mm / 20.01 ft |
| Weight (approx): | 5300 gr / 11.68 lb |
| Mounting type: | On-Mast |
