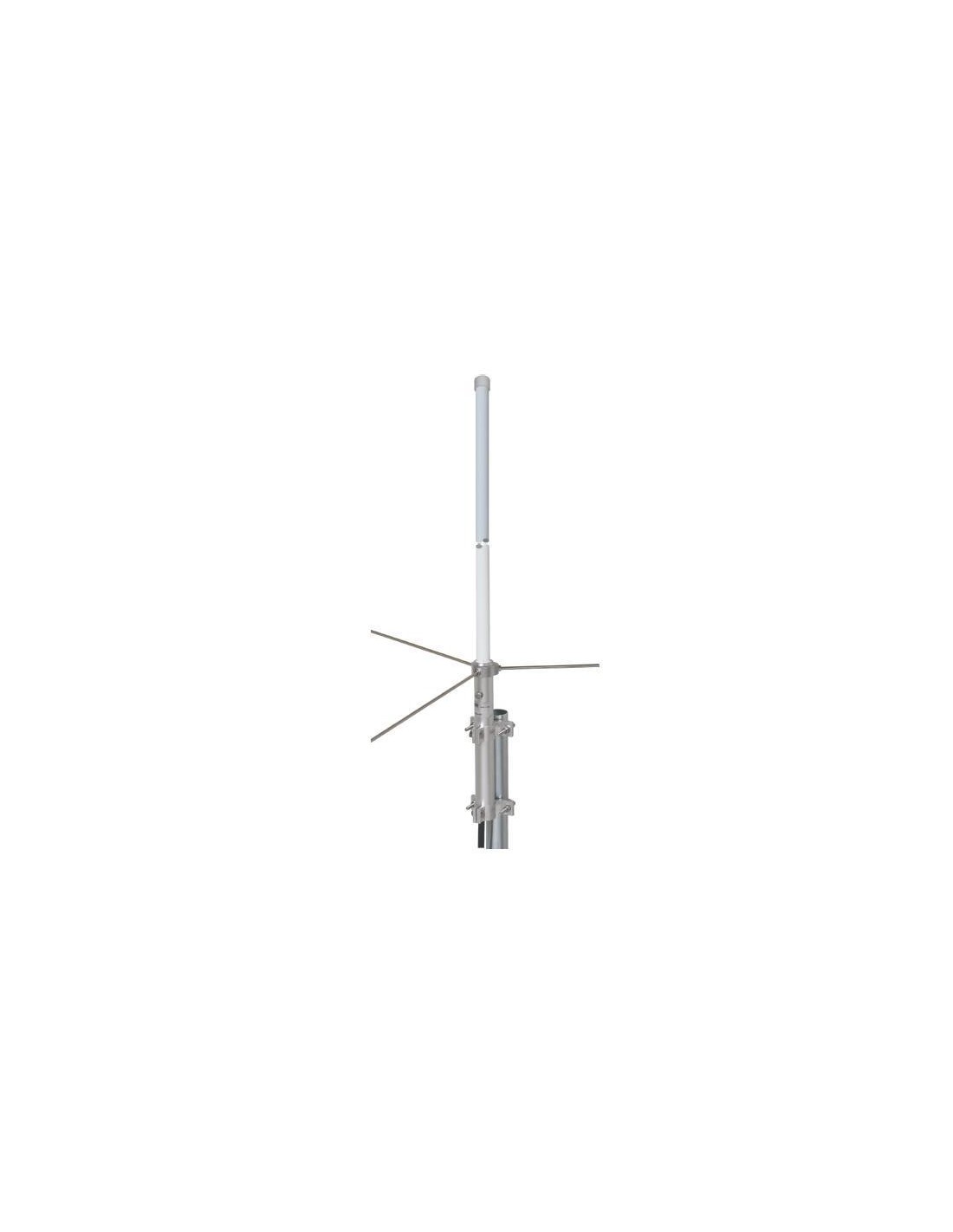

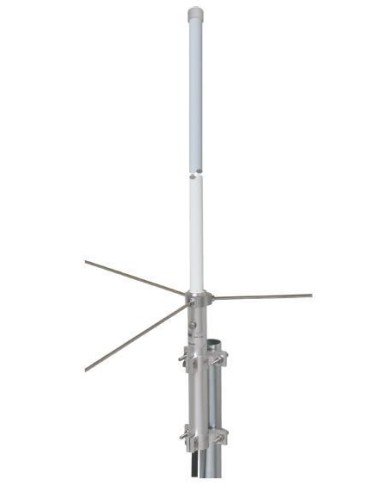

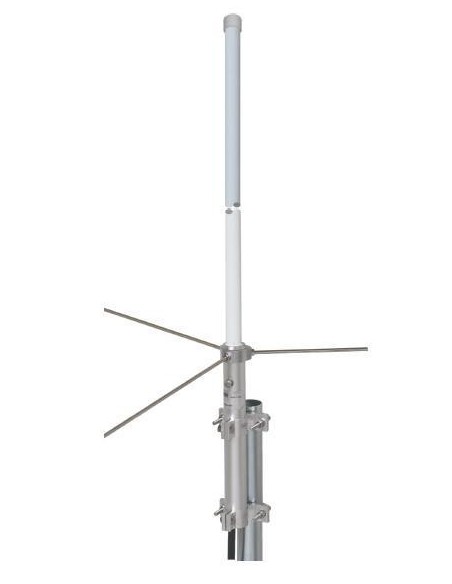

GPF 22 N  SIRIO View larger

GPF 22 N SIRIO

VS 000990

New product

BASE ANTENNA

135…175 MHz Réglable /

2×5/8 λ /

3.8 dBd – 5.95 dBi /

3230 mm

More details

115,00 € tax incl.

More info



         GPF22N VHF 135 175 MHz

  Type: 2x5/8λ ground plane colinear
- Frequency range: tunable 135...175 MHz
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 35°
- Radiation angle: 0°
- Polarization: linear vertical
- Gain: 3.8 dBd - 5.95 dBi
- Bandwidth @ SWR ≤2: see diagram
- SWR @ res. freq.: see diagram
- Max. Power (CW) @ 30°C: 200 Watts
- Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
- Connector: N-female, gold plated central pin

Mechanical Data
- Materials: Fiberglass, Aluminium, Brass, Stainless Steel
- Wind load / resistance: 95 N @ 150 Km/h / 150 Km/h
- Wind surface: 0.08 m²
- Height (approx.): 3230 mm
- Weight (approx.): 1630 gr
- Radial length (approx.): 495 mm
- Mounting mast: Ø 35-54 mm
