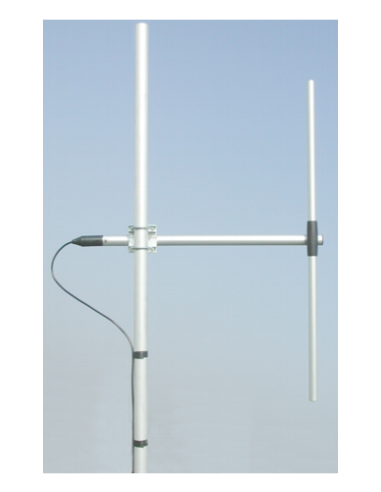

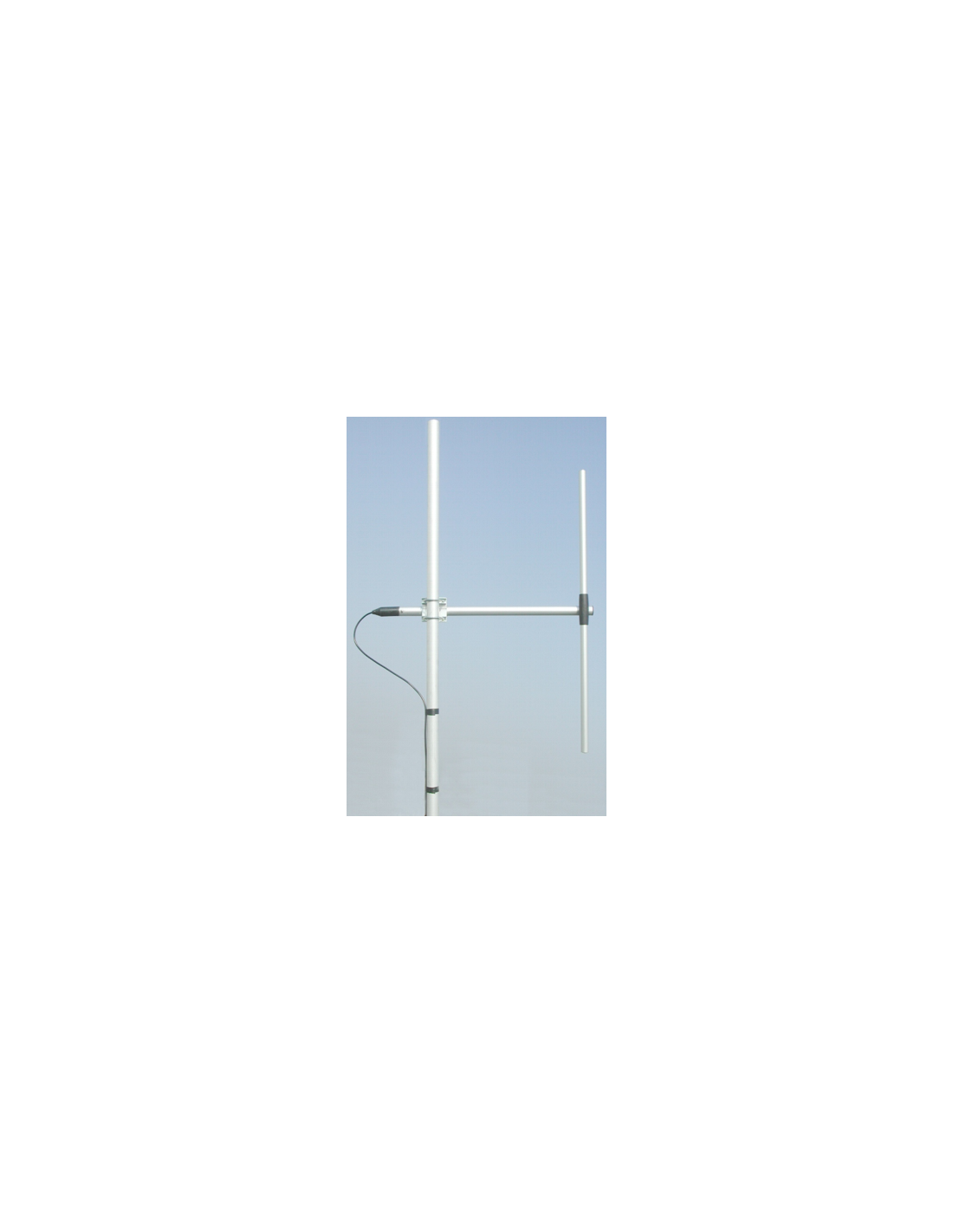

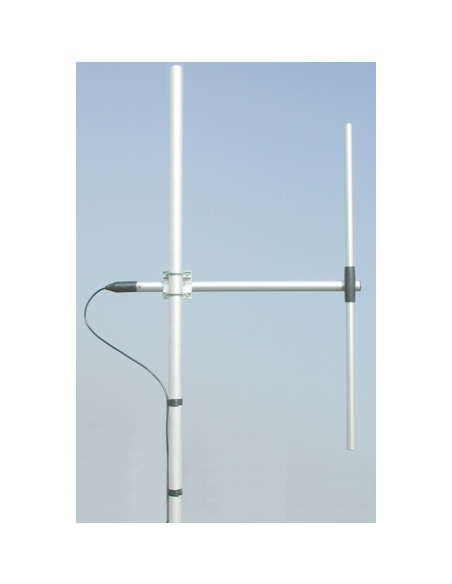

WD 140 N DIPOLE

VS 002275

New product

BASE ANTENNA VHF -

WIDE BAND

140...160 MHz /

1/2 λ  /

730 x 915 mm

More details

108,00 € tax incl.

More info

Type: 1/2 λ
Radiation: Directional
Polarization: Linear vertical
Frequency range:
140-160 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 1.85 dBd – 4 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
730 x 915 mm / 2.4 x 3 ft
Weight (approx): 1390 gr / 3.06 lb
Mounting type: On-Mast
