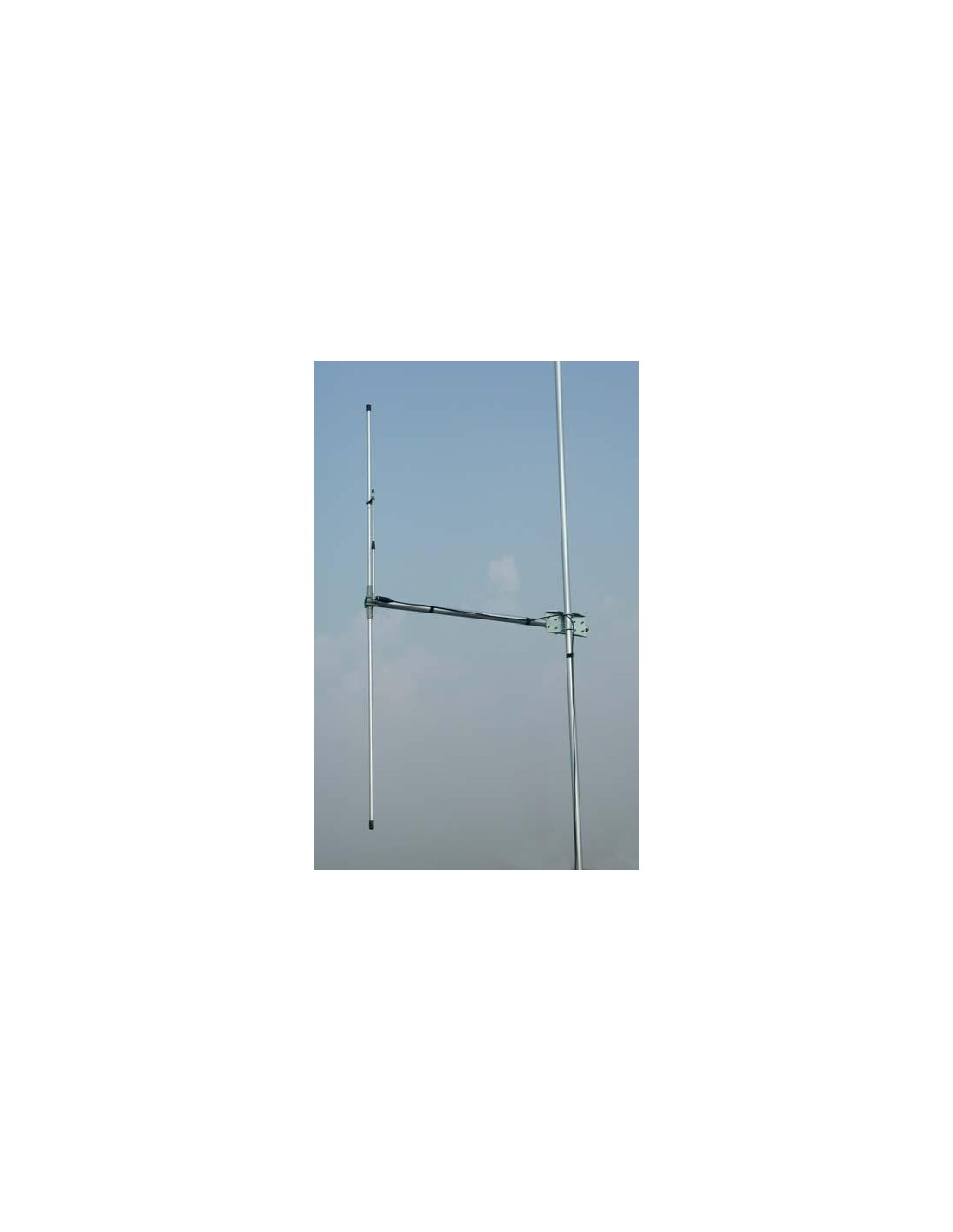

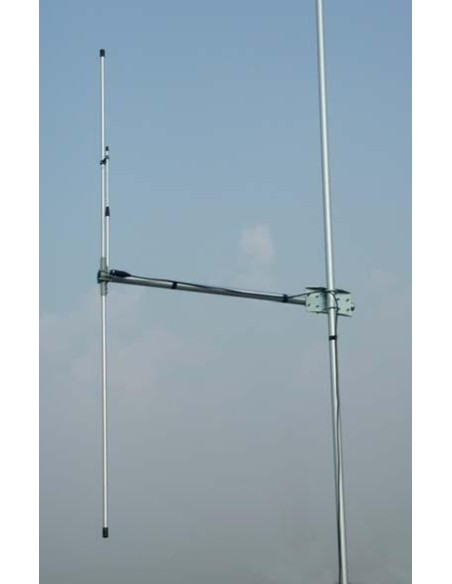

SD FM DIPOLE 87-194 MHz
BASE ANTENNA VHF
87...194 MHz /
1/2 λ - Directional /
1.85 dBd - 4 dBi
1600 x 1030 mm
| Type: | 1/2 λ |
| Radiation: | Directional |
| Polarization: | Linear Vertical or Horizontal |
| Frequency range: | 87…194 MHz Tunable |
| Systems: | 6m-HAM, 2m-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz |
| Gain: | 1.85 dBd - 4 dBi (vertical polarization only) |
| Bandwidth: | ≥ 14.5MHz @ SWR ≤ 1.5 |
| Max Power: | 300 W (CW) |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Chromed brass, Galvanized steel, Zamak |
| Dimensions (approx): | 1600 x 1030 mm / 5.25 x 3.38 ft |
| Weight (approx): | 1850 gr / 4.08 lb |

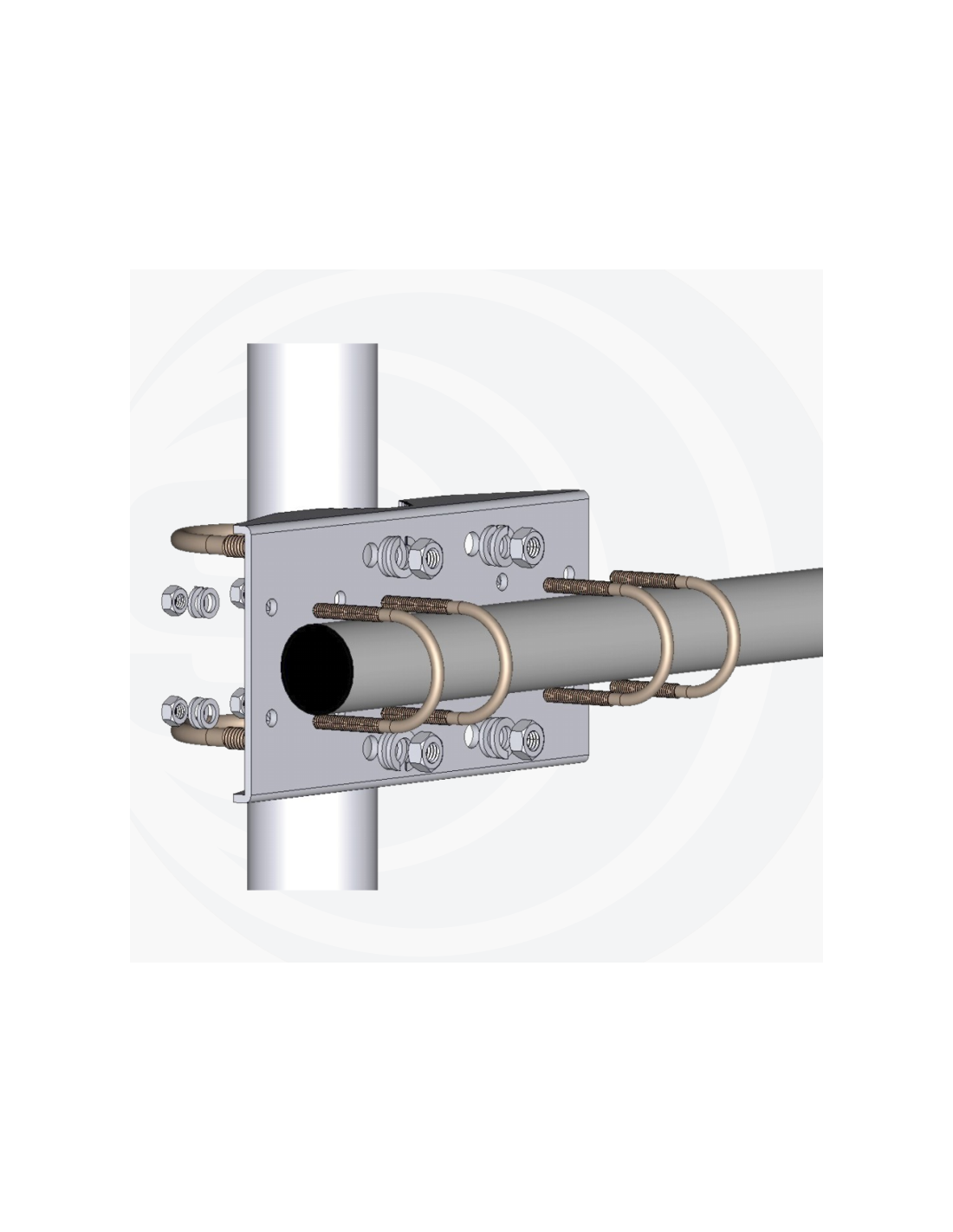

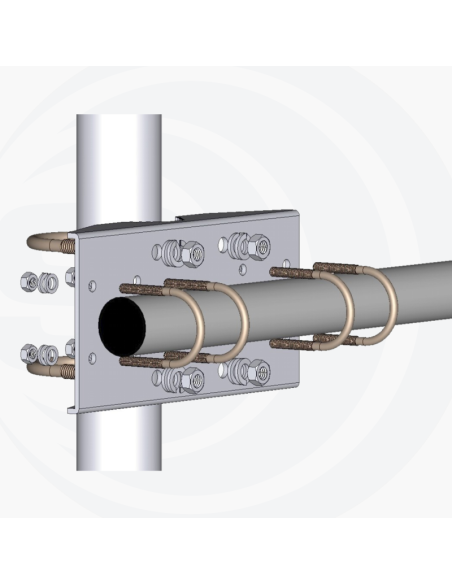

| Mounting type: | On-Mast |
