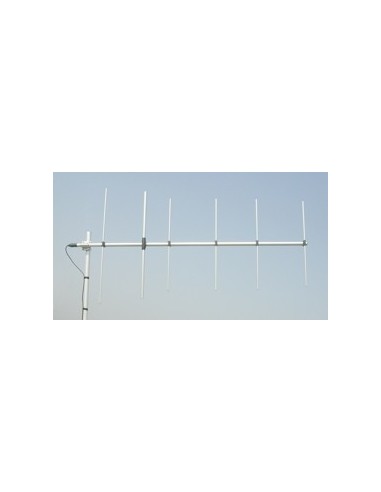

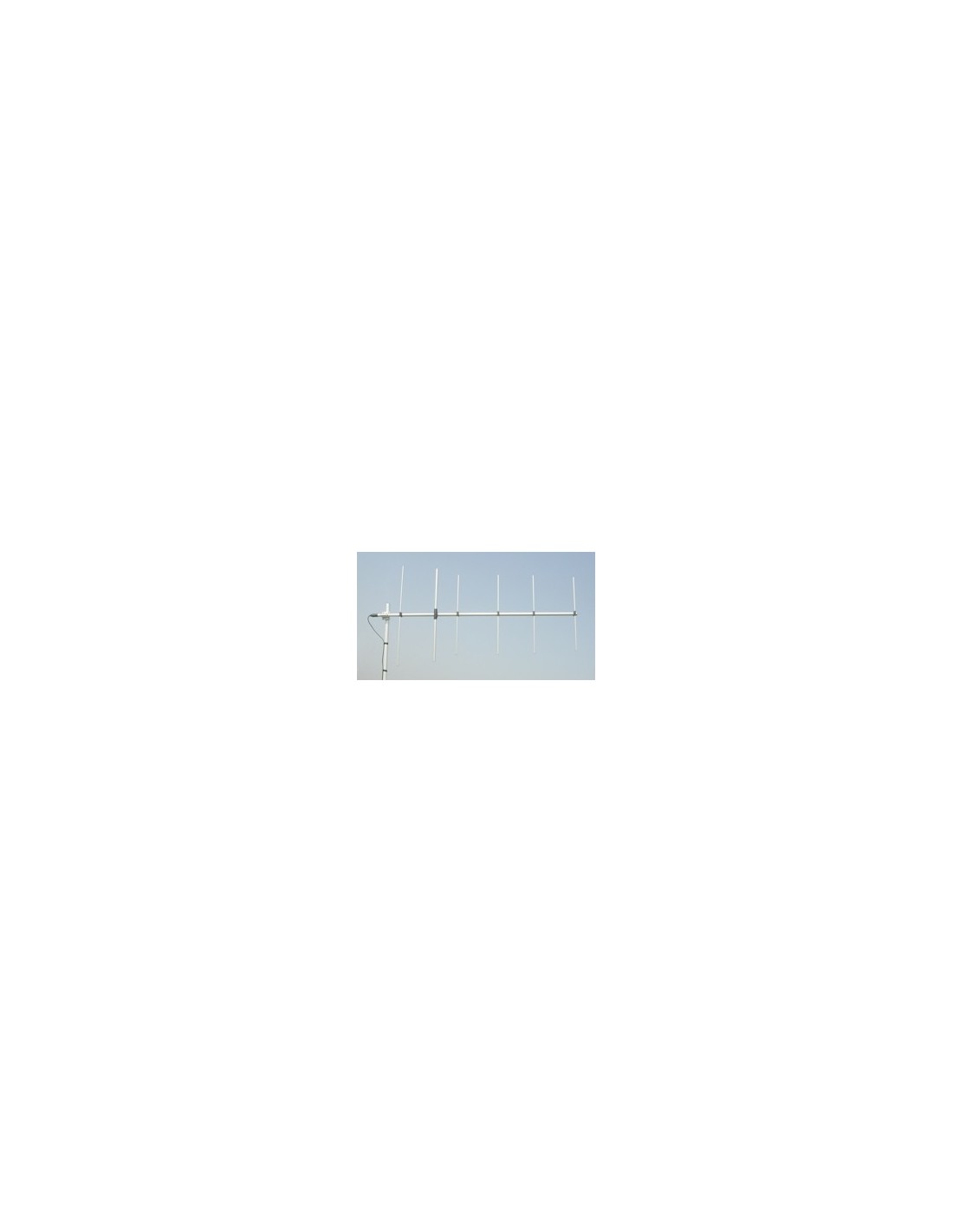

WY 155-6N SIRIO

VS 000765

New product

DIRECTIONAL BASE ANTENNA VHF -

WIDE BAND

155...175 MHz /

8.35 dBd – 10.5 dBi /

2010 x 985 mm

More details

Warning: Last items in stock!

164,00 € tax incl.

More info

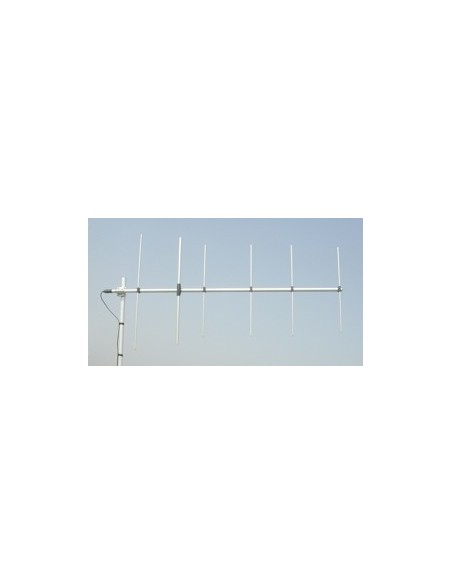

Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
155-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 8.35 dBd – 10.5 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground

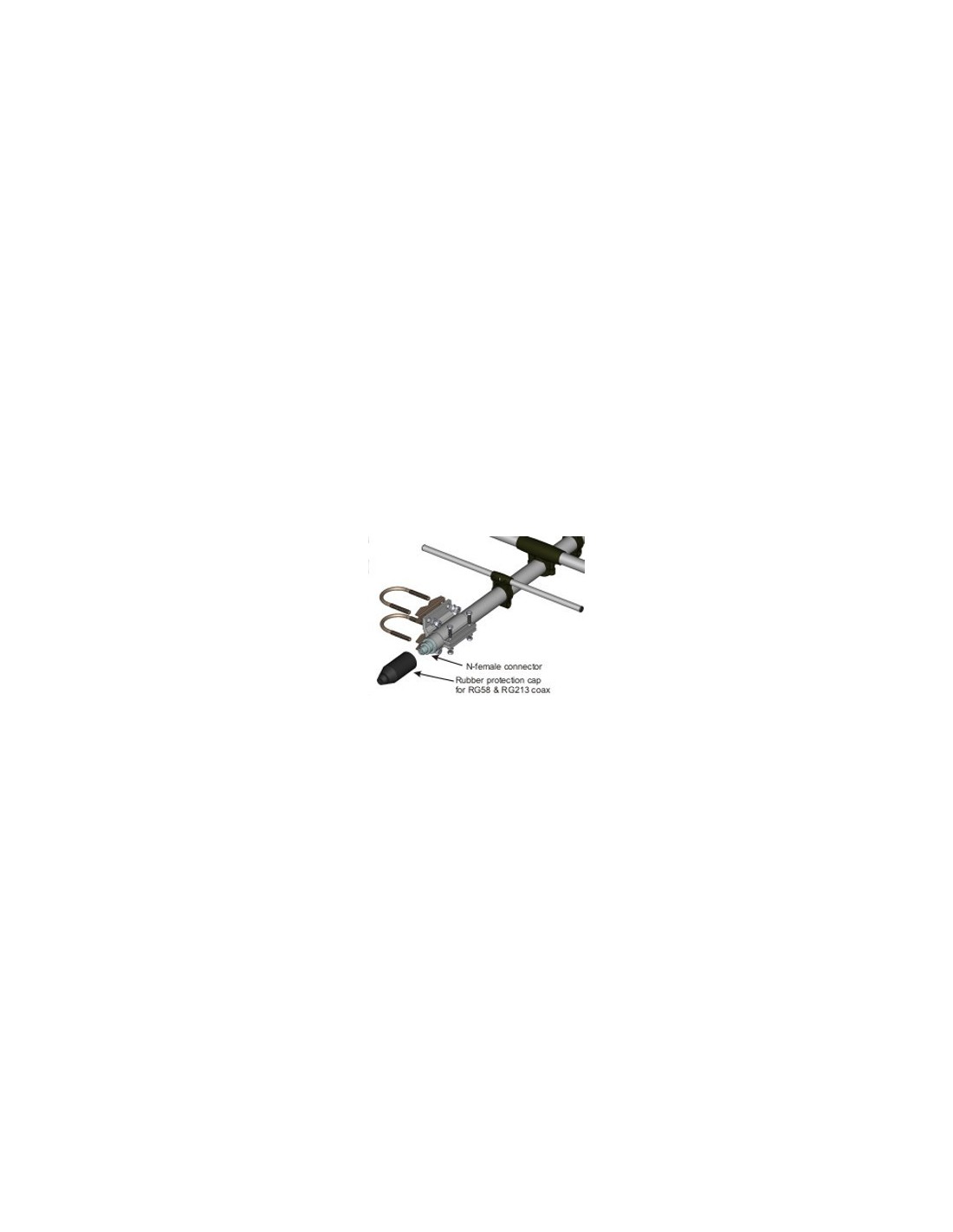

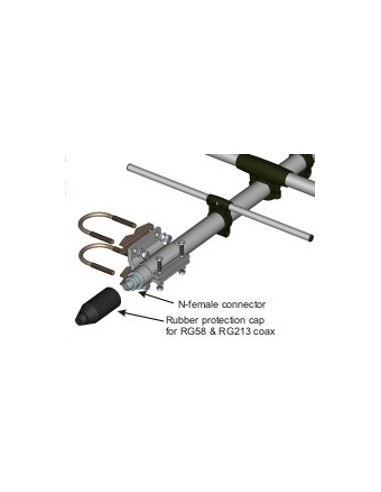

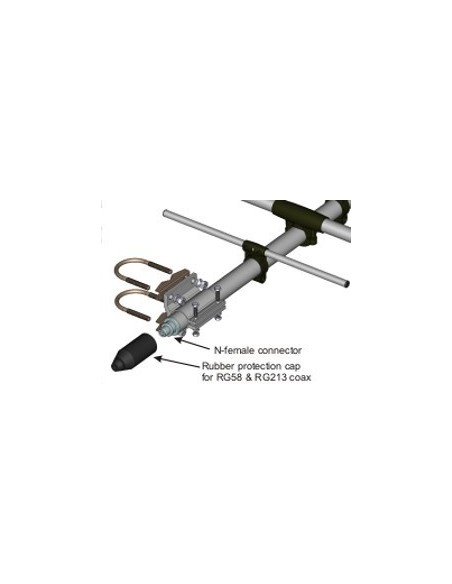

Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
2010 x 985 mm / 6.59 x 3.23 ft
Weight (approx):
2390 gr / 5.27 lb
Mounting type: On-Mast
