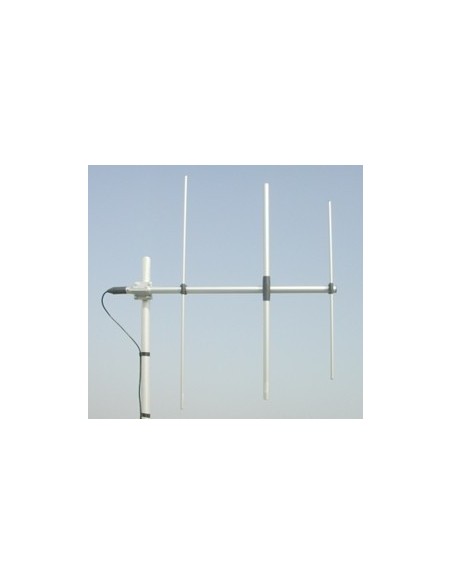

WY 155-3N SIRIO

VS 000745

New product

DIRECTIONAL BASE ANTENNA VHF -

WIDE BAND

155...175 MHz /

4.85 dBd – 7 dBi /

990 x 985 mm

More details

121,00 € tax incl.

More info

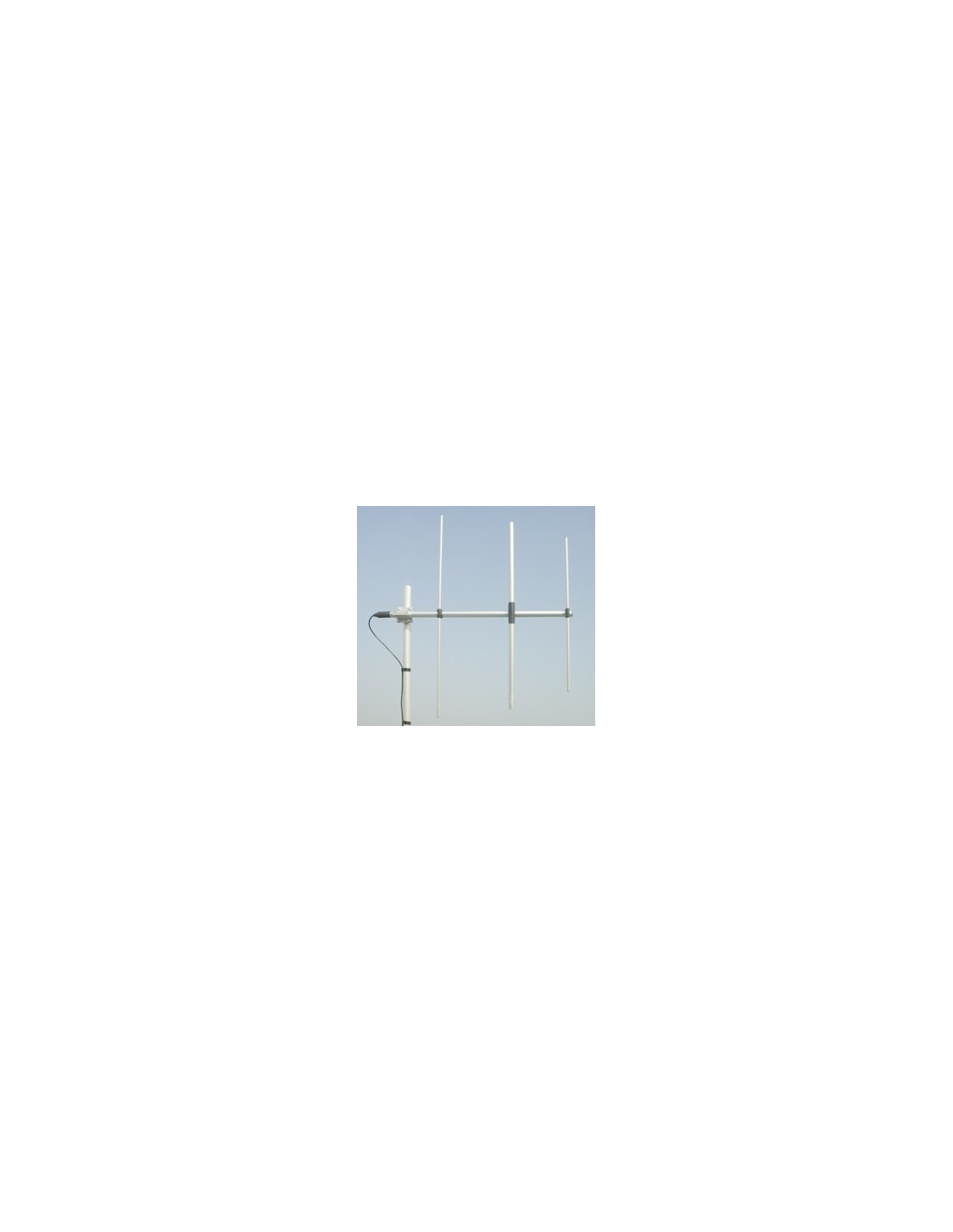

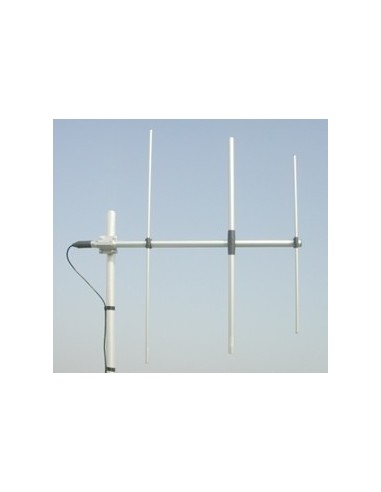

Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
155-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 4.85 dBd – 7 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground

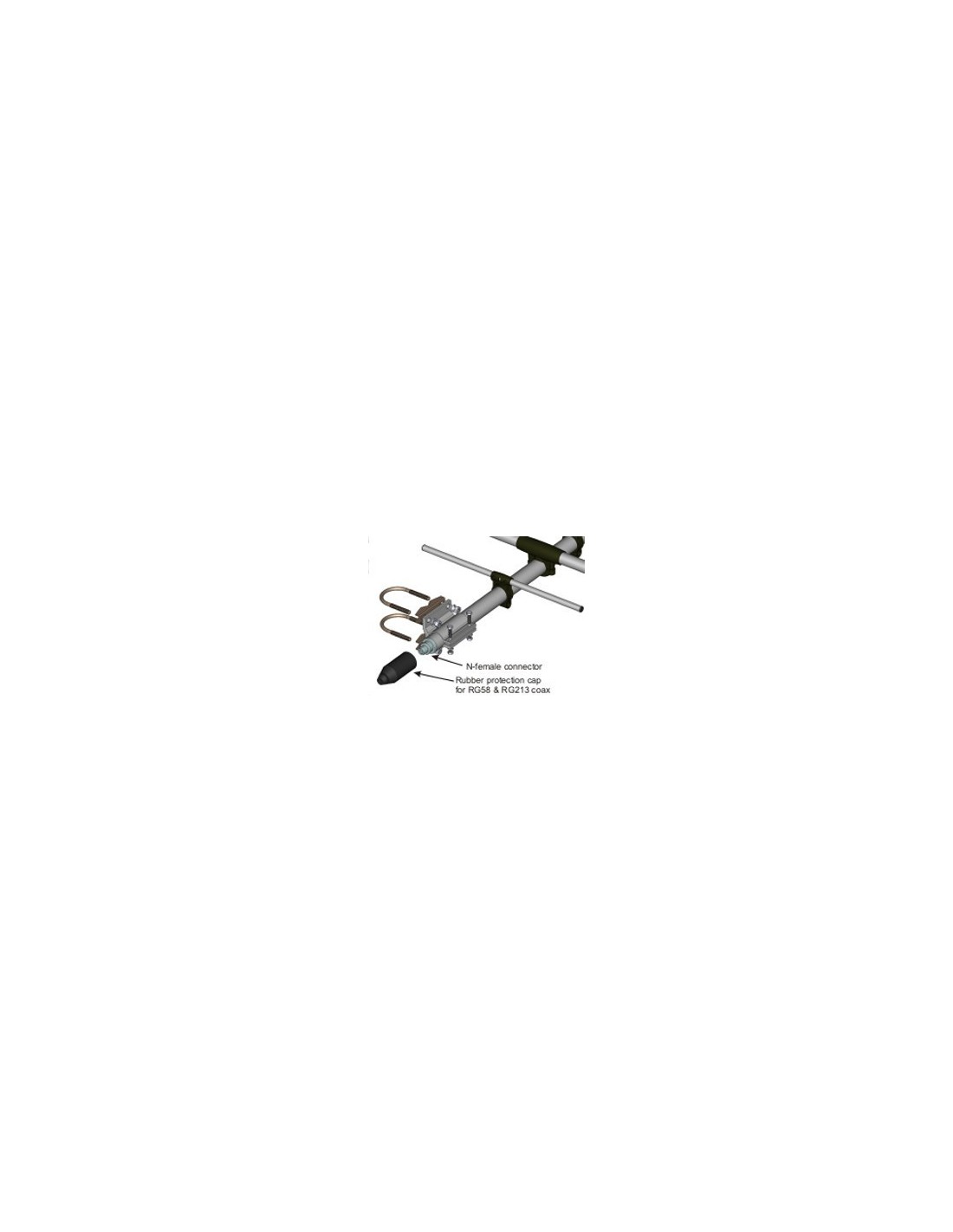

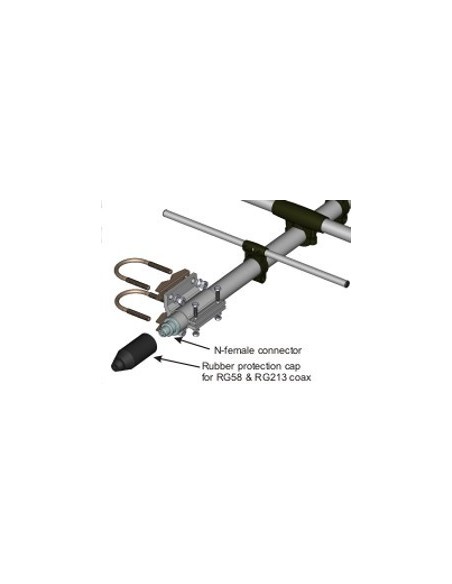

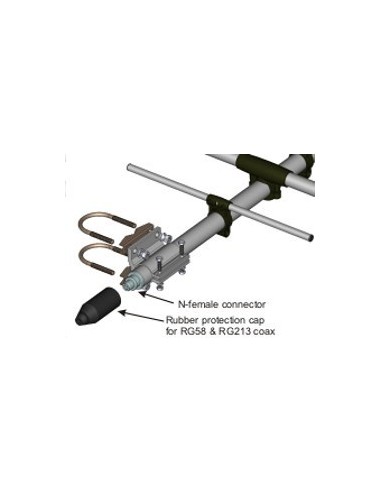

Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
990 x 985 mm / 3.25 x 3.23 ft
Weight (approx):
1680 gr / 3.7 lb

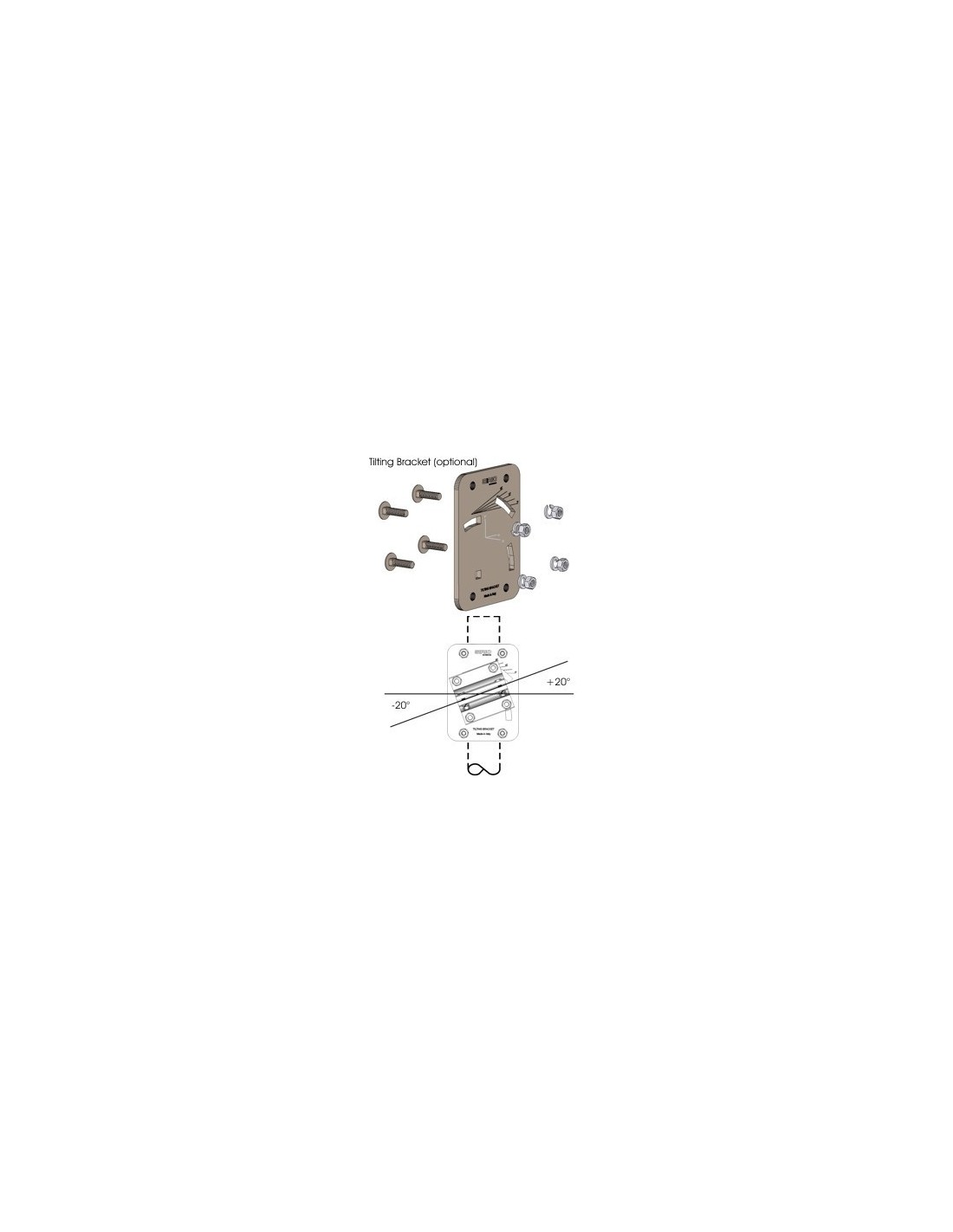

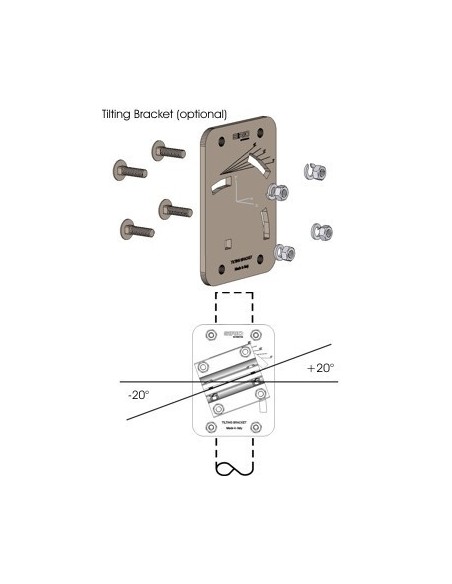

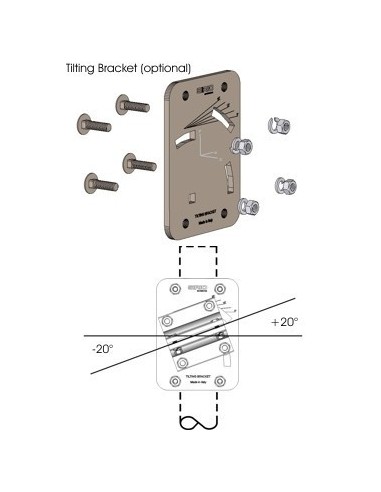

Mounting type: On-Mast
