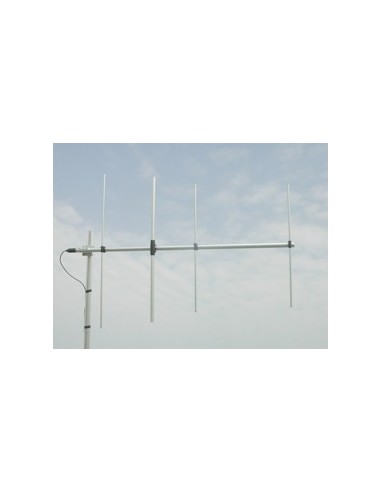

WY 140-4N SIRIO

Reference: VS 000750

Condition: New product

DIRECTIONAL BASE ANTENNA VHF -

WIDE BAND

140...160 MHz /

6.35 dBd – 8.5 dBi /

1600 x 1085 mm

More details

Type:	4 elements Yagi
Radiation:	Directional
Polarization:	Linear Vertical or Horizontal
Frequency range:	140-160 MHz @ SWR ≤1.5 No tuning required
Systems:	2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain:	6.35 dBd – 8.5 dBi
Max Power:	200 W (CW)
Grounding protection:	DC-Ground

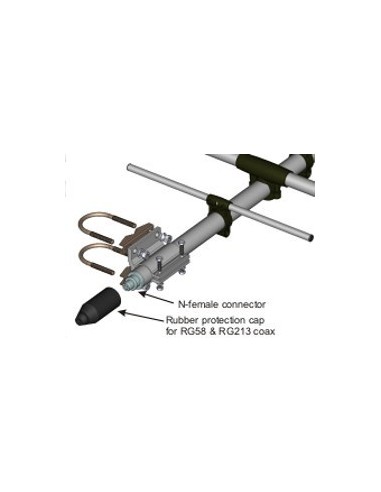

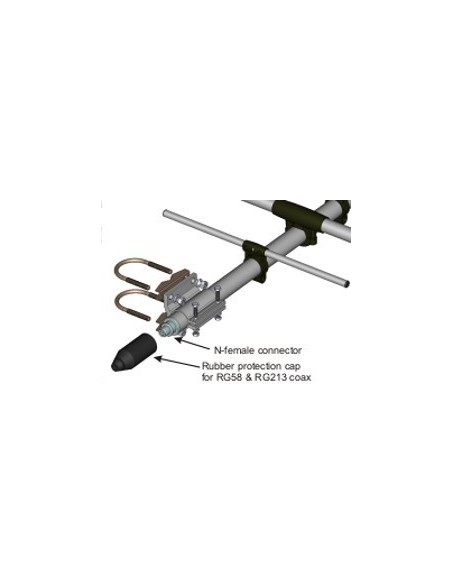

Connector:	N-female

Mechanical Data:

Materials:	Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):	1600 x 1085 mm / 5.25 x 3.56 ft
Weight (approx):	2070 gr / 4.56 lb
Mounting type:	On-Mast
