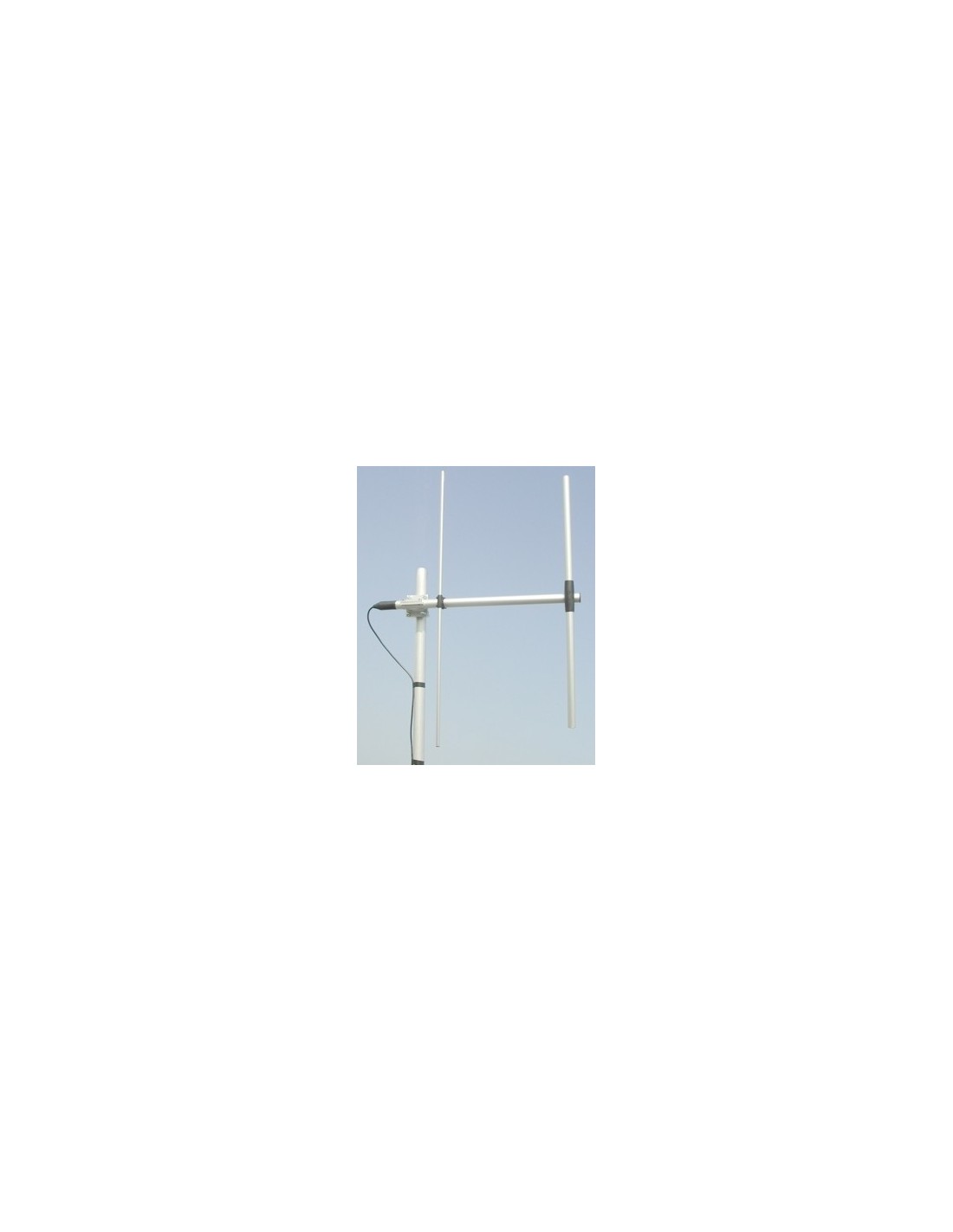

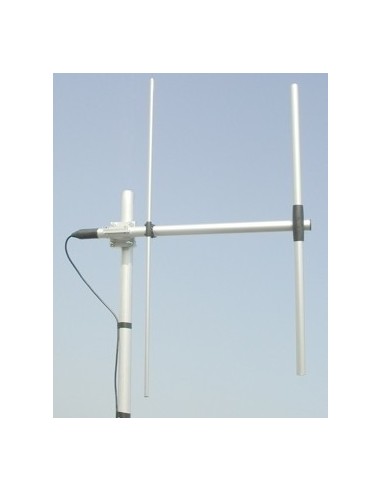

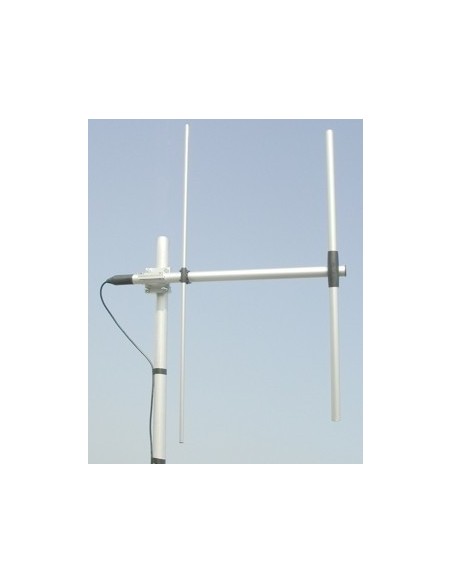

WY 140-2N SIRIO

VS 000730

New product

DIRECTIONAL BASE ANTENNA VHF -

WIDE BAND

140...160 MHz /

3.05 dBd – 5.2 dBi /

740 x 1110 mm

More details

Warning: Last items in stock!

101,00 € tax incl.

More info

Type: 2 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
140-160 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 3.05 dBd – 5.2 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground

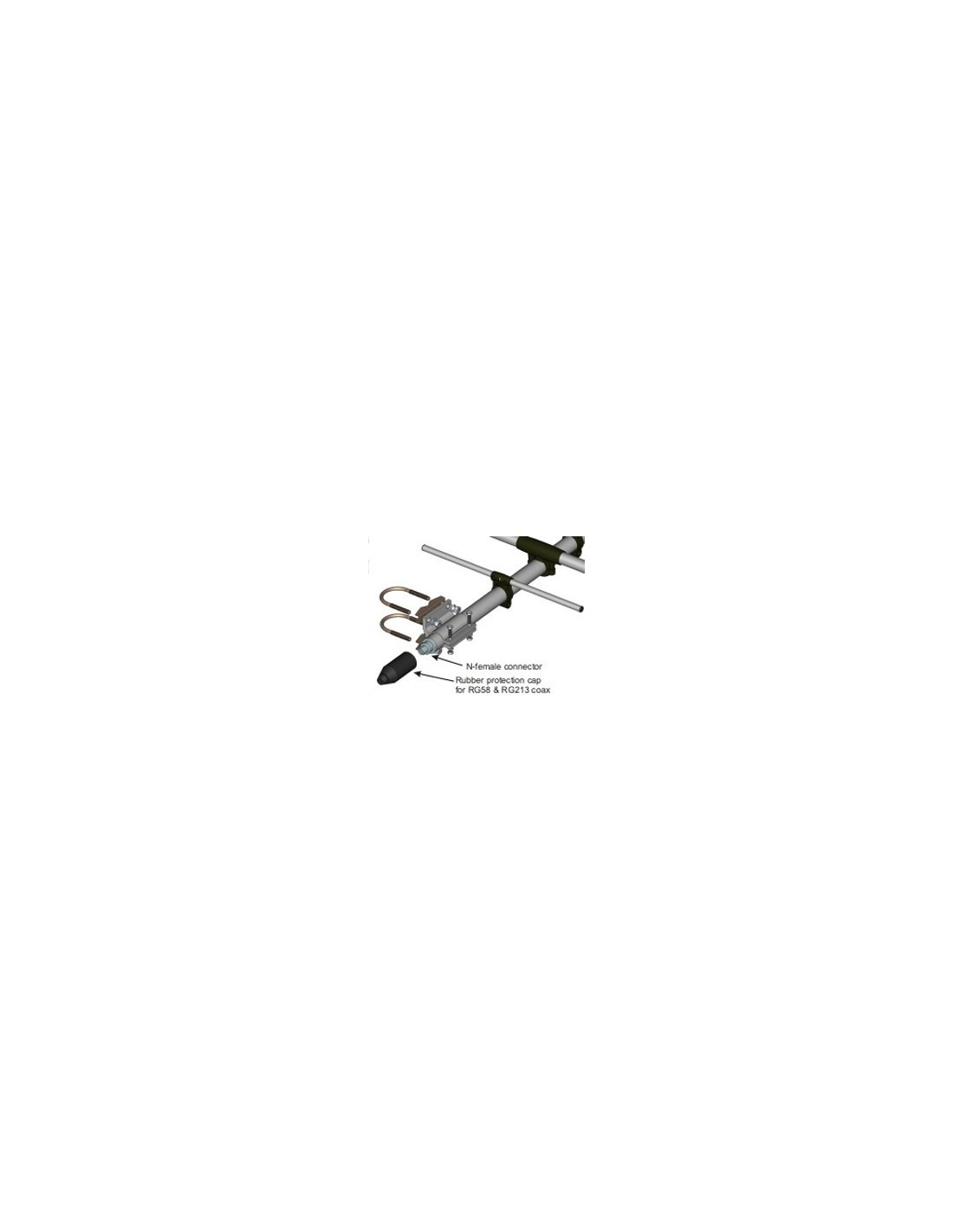

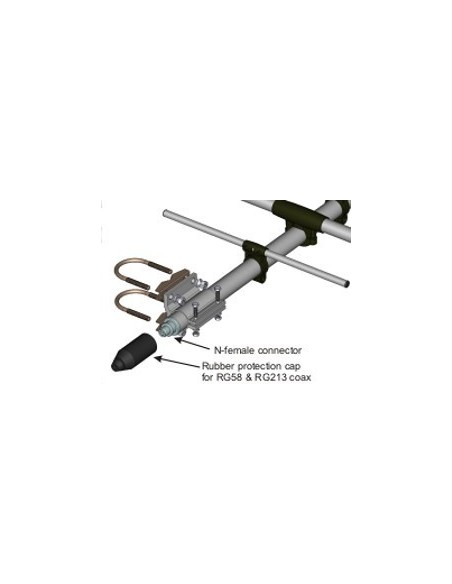

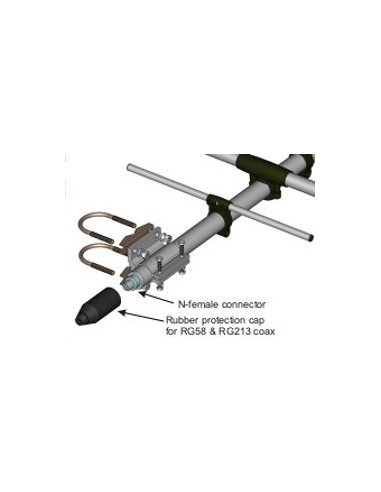

Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
740 x 1110 mm / 2.43 x 3.64 ft
Weight (approx):
1490 gr / 3.28 lb

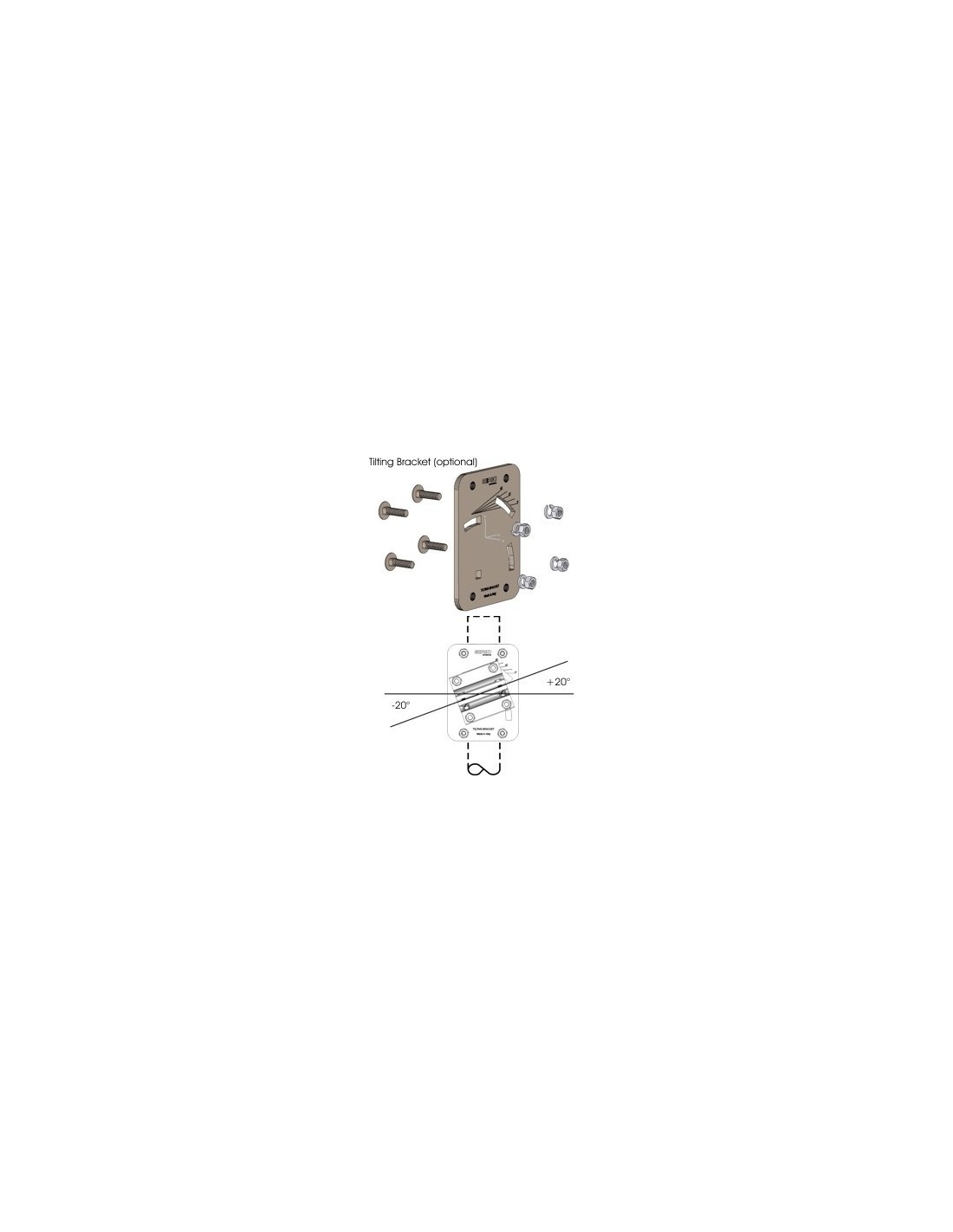

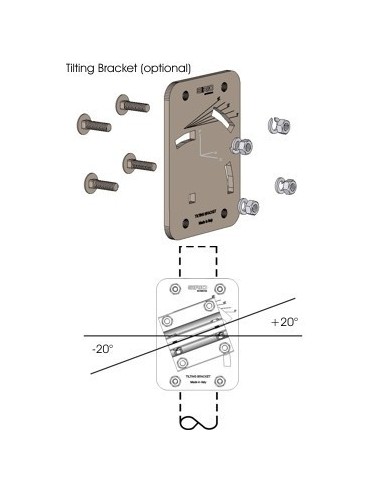

Mounting type: On-Mast
