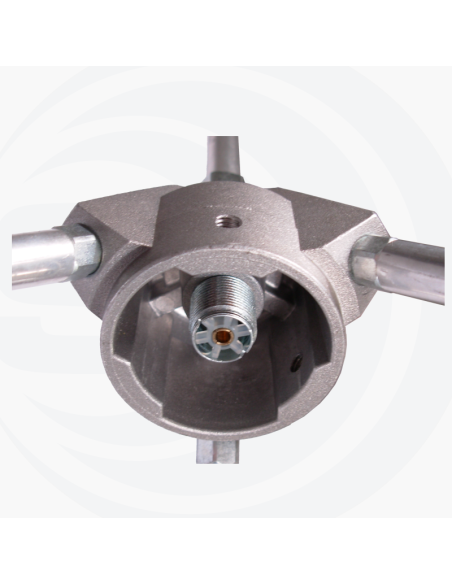

GPA 135-175 SIRIO

VS 000720

New product

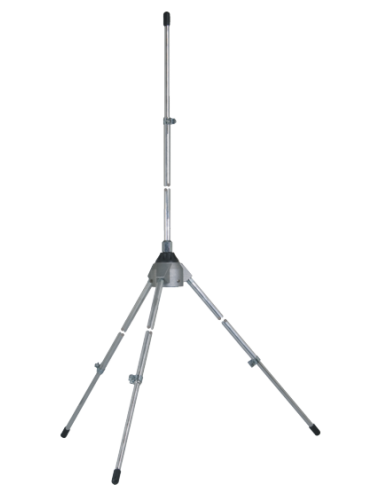

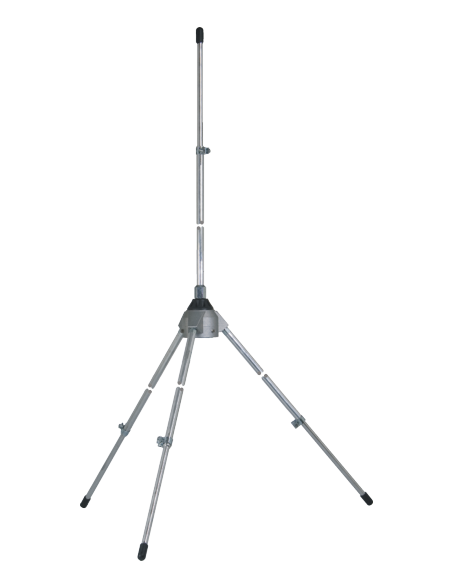

BASE ANTENNA VHF

135…175 MHz Tunable/

1/4 λ /

960 mm

More details

38,00 € tax incl.

More info

Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
135 … 175 MHz Tunable
Systems: 10m-HAM, 6m-HAM, 2m-HAM, 1.25m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Bandwidth:
≥ 13MHz @ SWR ≤ 2
Max Power:
300 W (CW)
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Zamak
Height (approx):
960 mm / 3.15 ft
Weight (approx):
520 gr / 1.15 lb

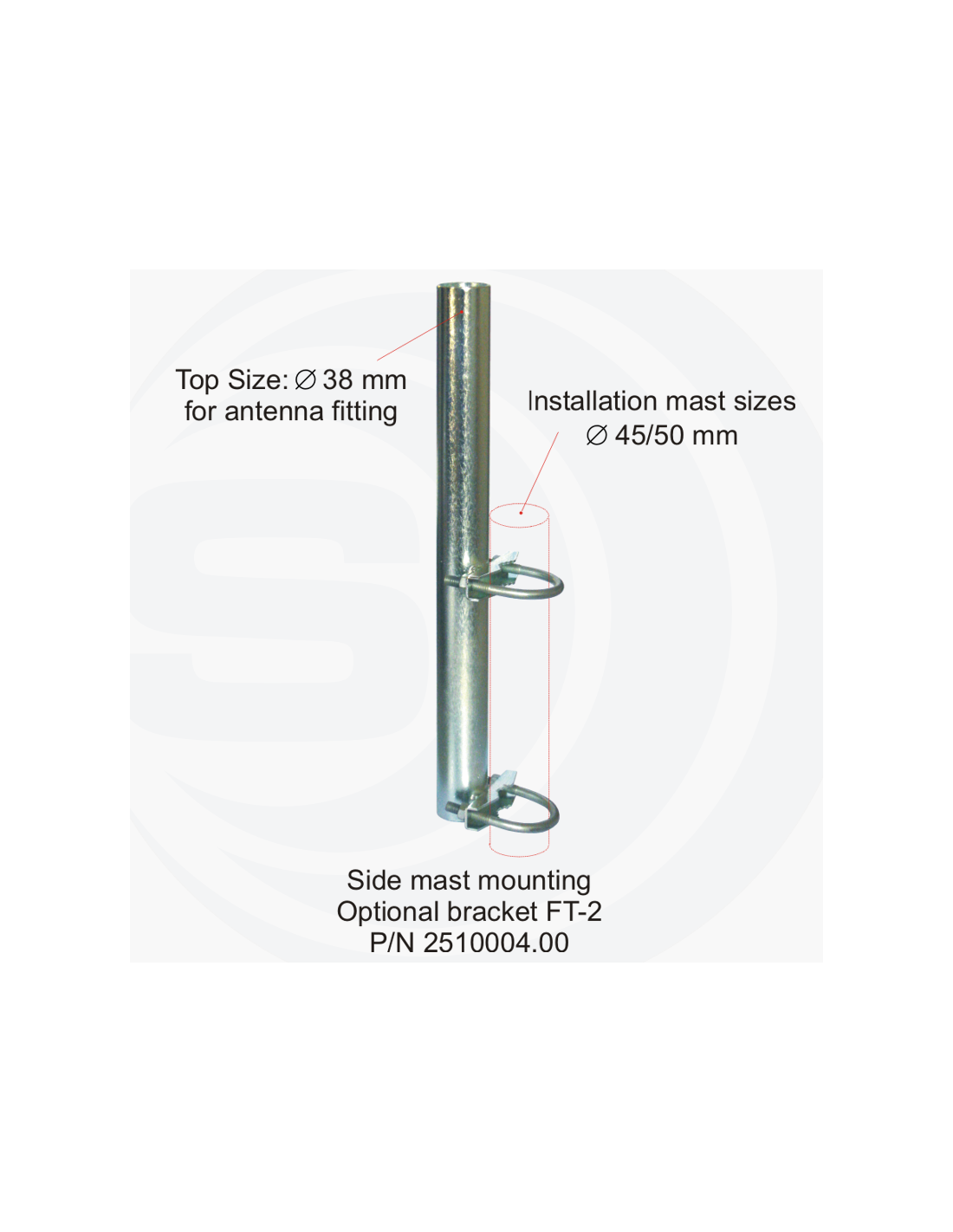

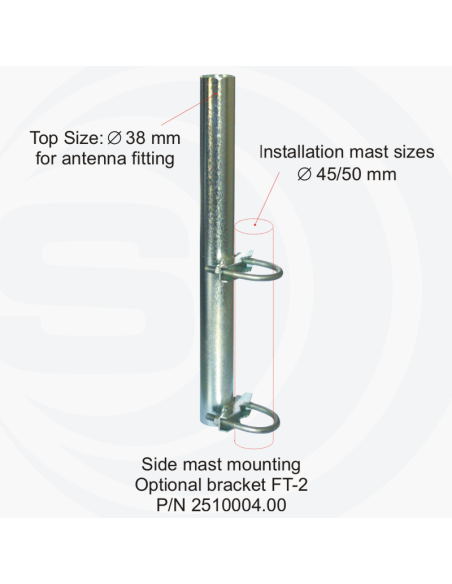

Mounting type: On-Mast
