CX 156 SIRIO

VS 000685

New product

BASE ANTENNA VHF

156...160 MHz /

3/4 λ coaxial J-pole /

1500 mm

More details

46,00 € tax incl.

More info

Type: 3/4 λ coaxial J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
156 - 160 MHz @ SWR ≤ 1.5
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz
Gain: 2 dBd – 4.15 dBi
Max Power: 250 W (CW)
Grounding protection: DC-Ground

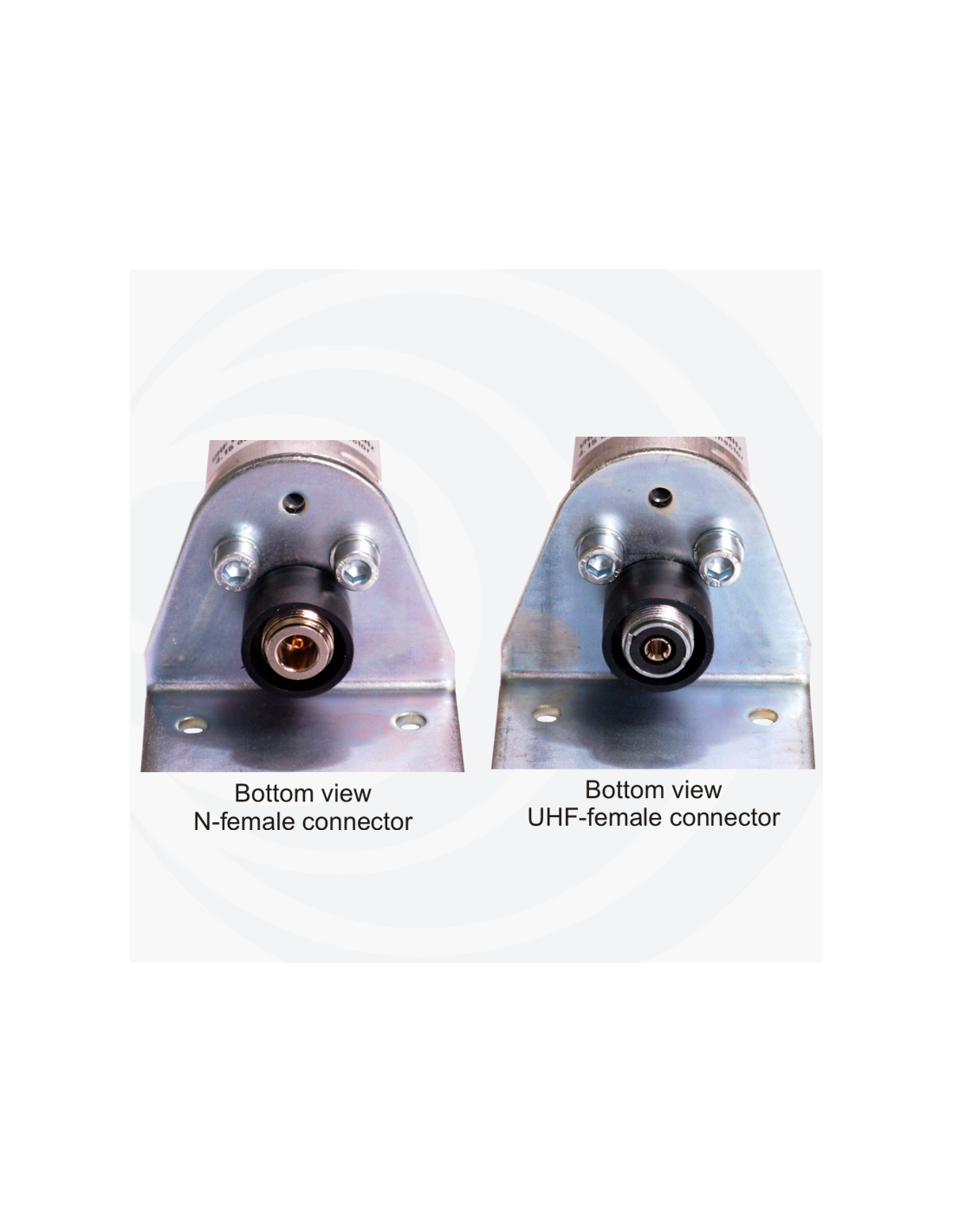

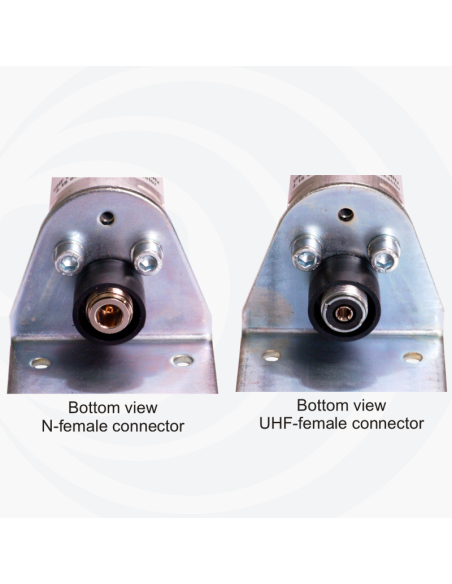

Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Brass, Galvanized steel, Zamak
Height (approx):
1500 mm / 4.92 ft
Weight (approx): 750 gr / 1.65 lb
Mounting type: On-Mast

Download
