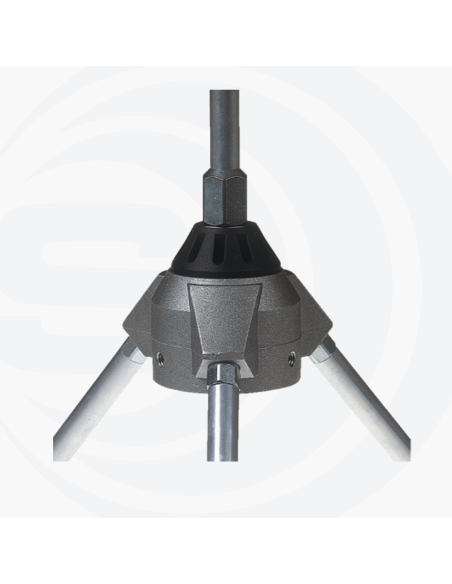

GPA 66-108 SIRIO

VS 000060

New product

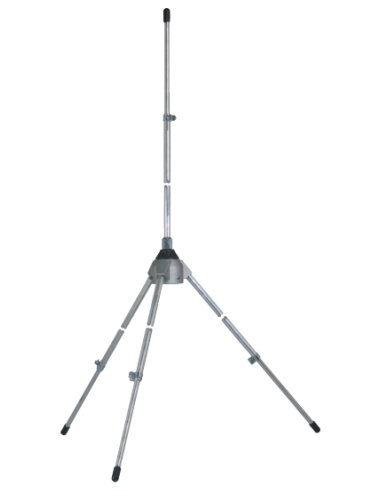

BASE ANTENNA VHF

66...108 MHz Tunable /

1/4 λ /

1930 mm

More details

Warning: Last items in stock!

43,00 € tax incl.

More info

Type 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
66 … 108 MHz Tunable
Systems: 10m-HAM, 6m-HAM, 2m-HAM, 1.25m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Bandwidth:
≥ 6.5MHz @ SWR ≤ 2
Max Power:
500 W (CW)

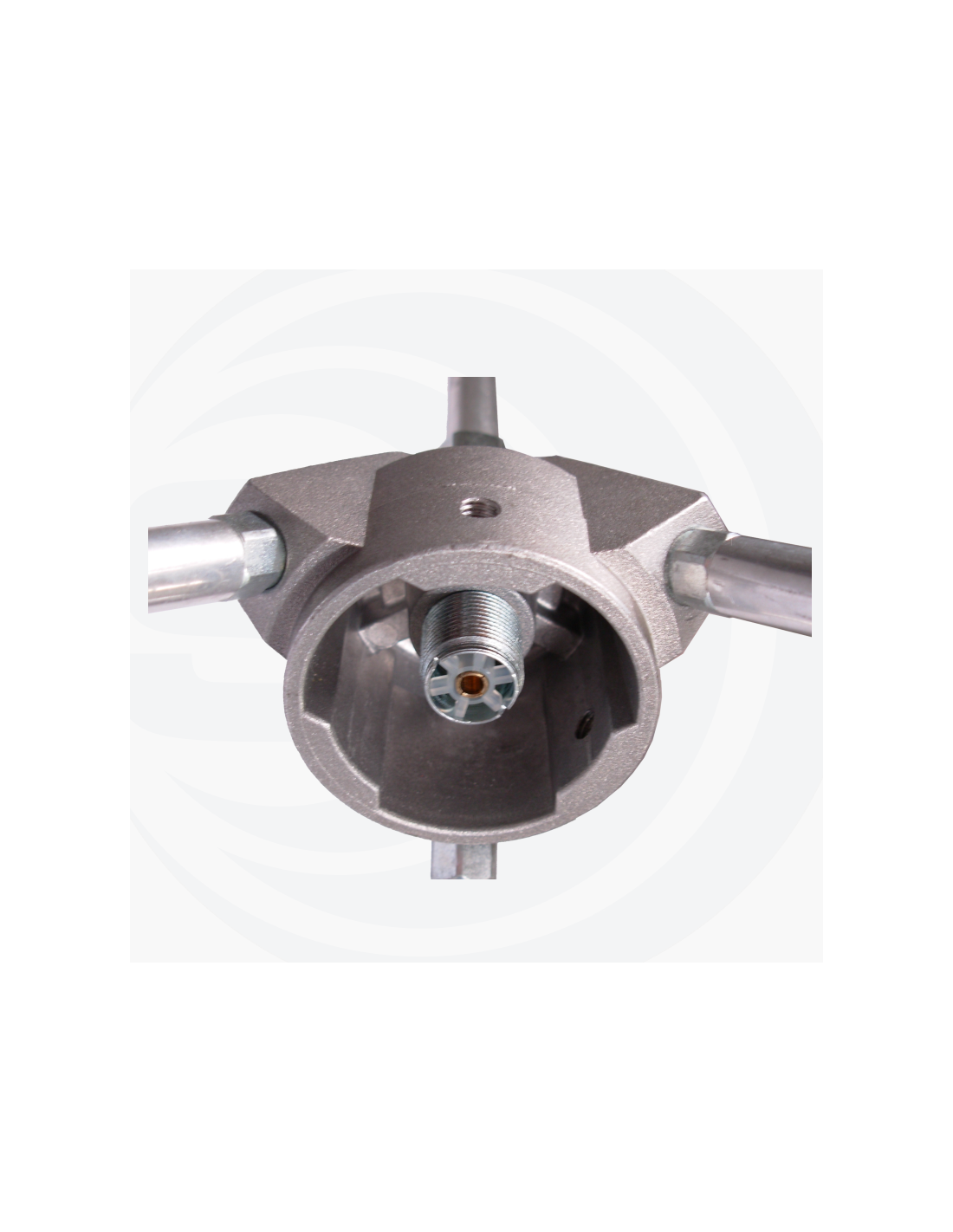

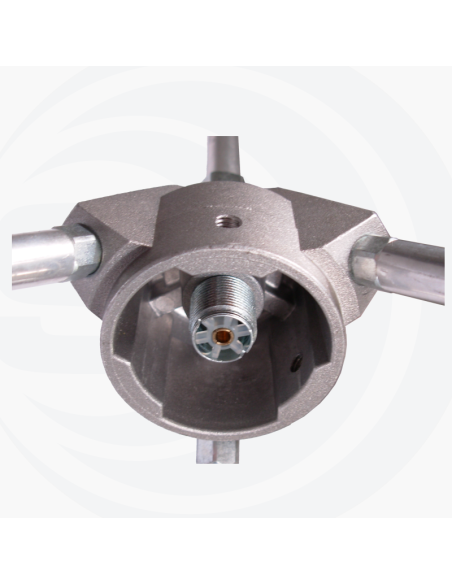

Connector: UHF-female (SO-239)
Mechanical Data:

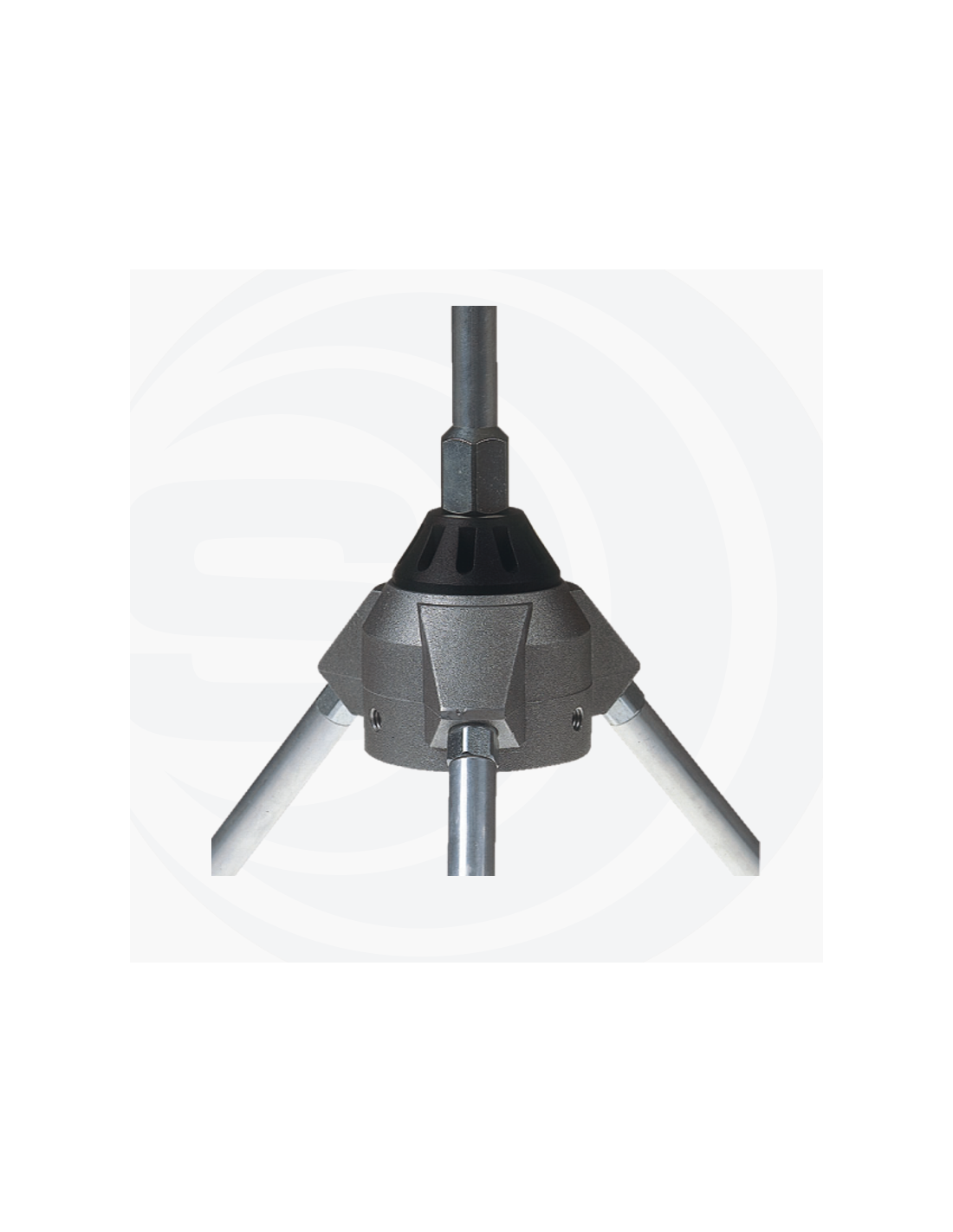

Materials: Aluminium, Chromed brass, Zamak
Height (approx):
1930 mm / 6.33 ft
Weight (approx):
700 gr / 1.54 lb

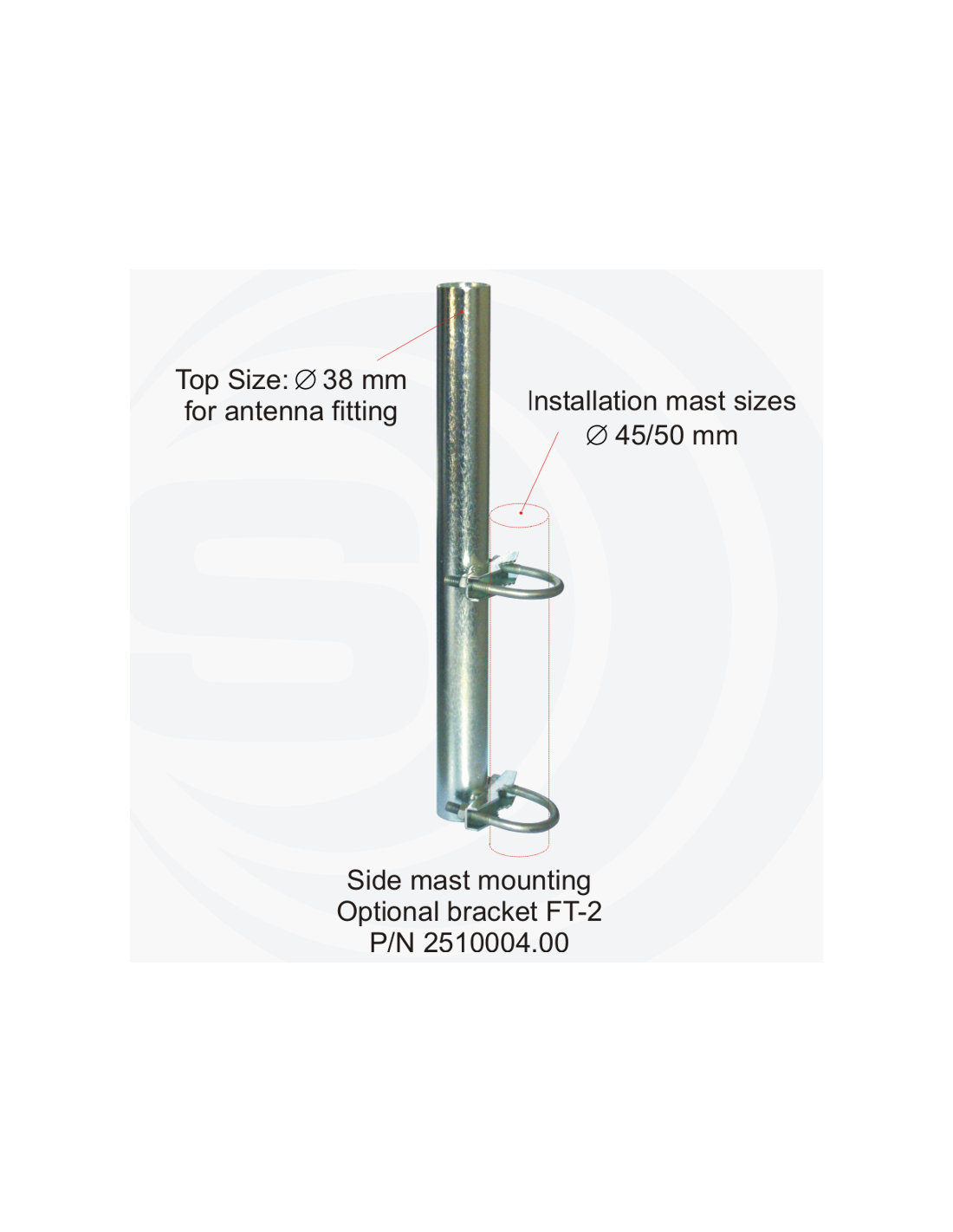

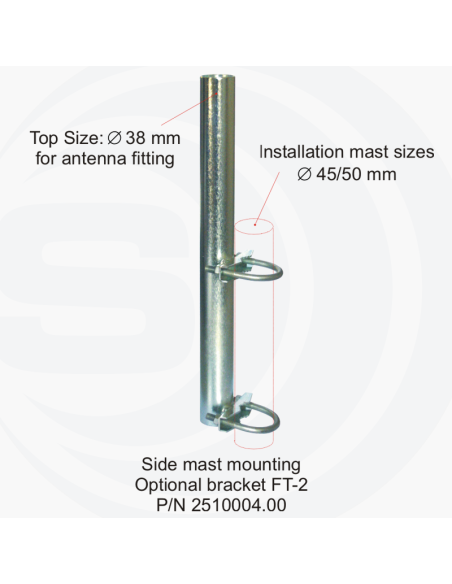

Mounting type: On-Mast
