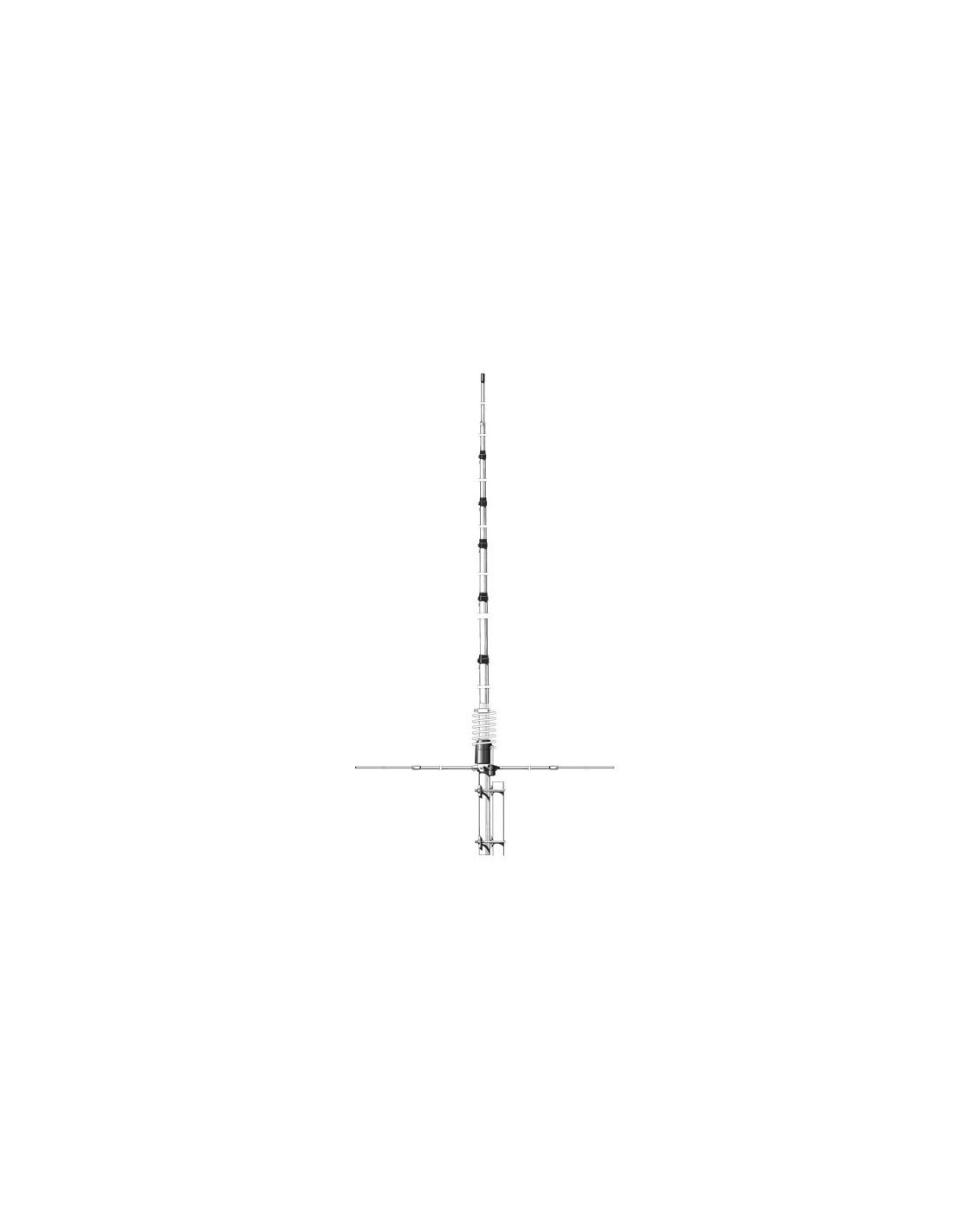

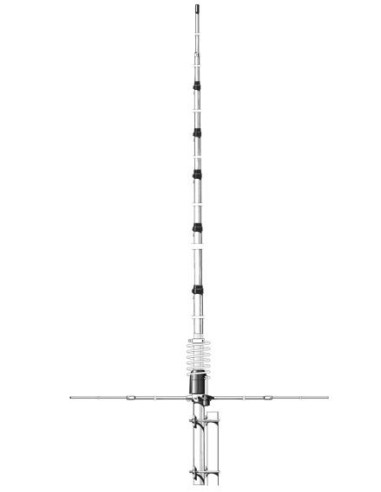

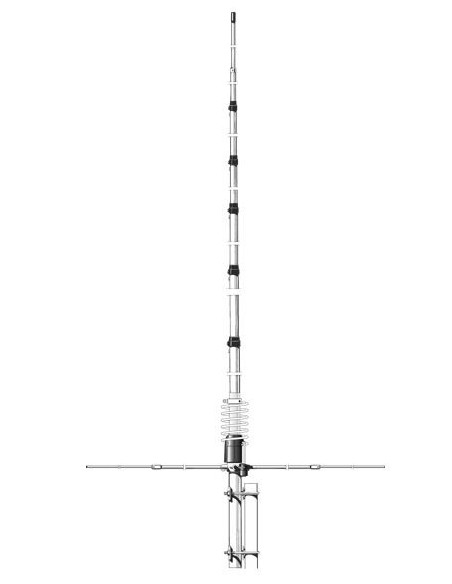

| Type: | 5/8 λ ground plane |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |

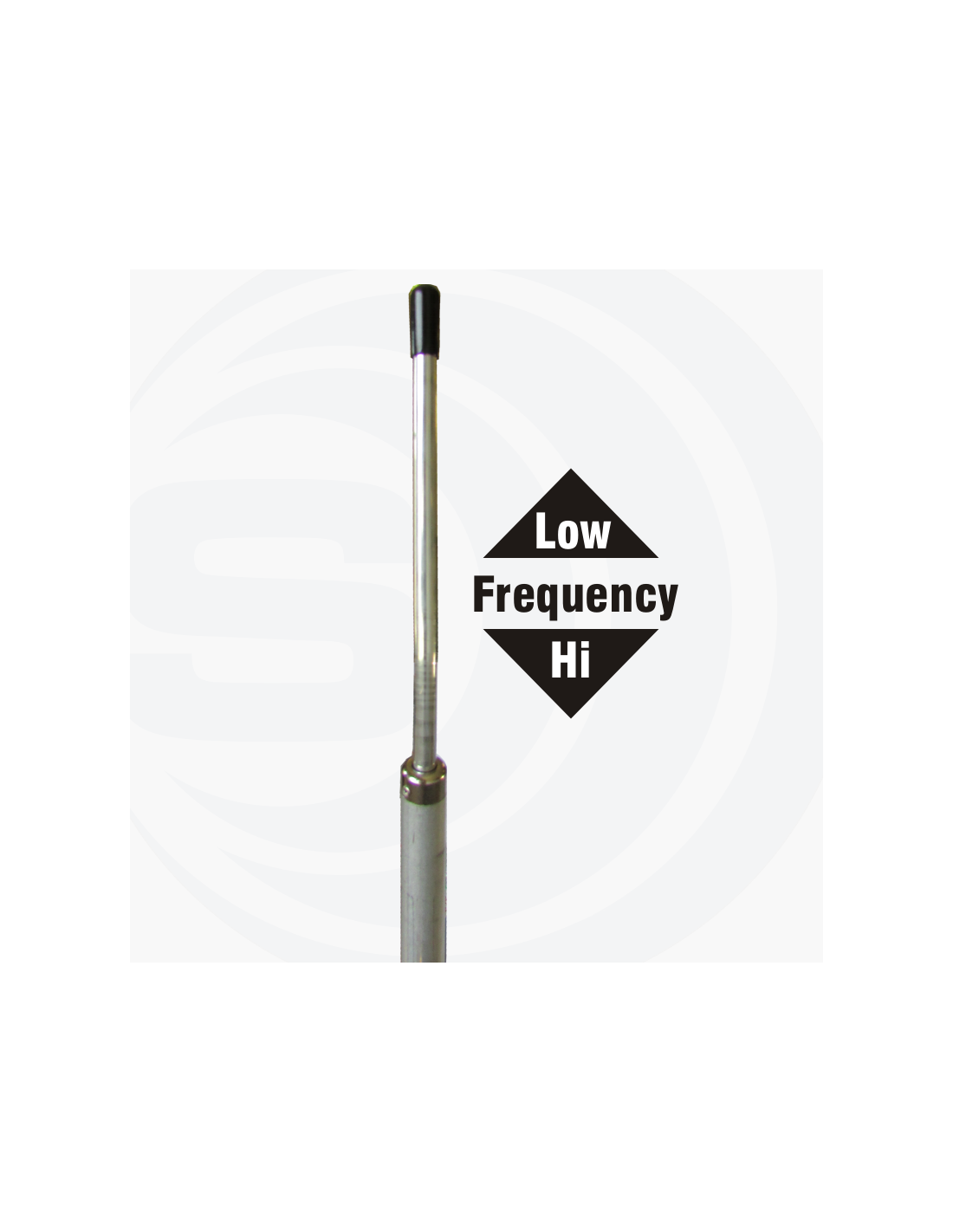

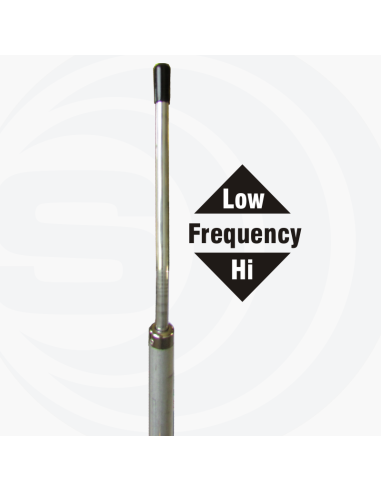

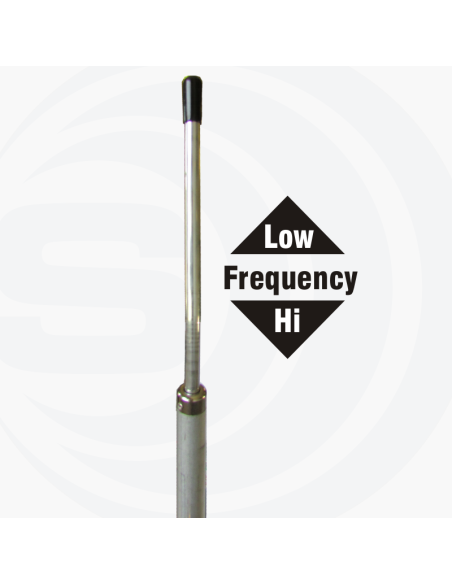

| Frequency range: | 27 ... 30 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 1.2 dBd, 3.35 dBi |
| Bandwidth: | ≥ 1.3MHz @ SWR ≤ 2 |
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Brass, Galvanized steel, Thermoplastic UV stabilized |
| Height (approx): | 7230 mm / 23.72 ft |
| Weight (approx): | 2900 gr / 6.39 lb |
| Mounting type: | On-Mast |
Even the Iconic products such as the SIRIO NEW TORNADO, on the market for over
30years, are always the subject of study and analysis for continuous improvement to
make them increasingly responsive to the requests of our customers. This analysis led us

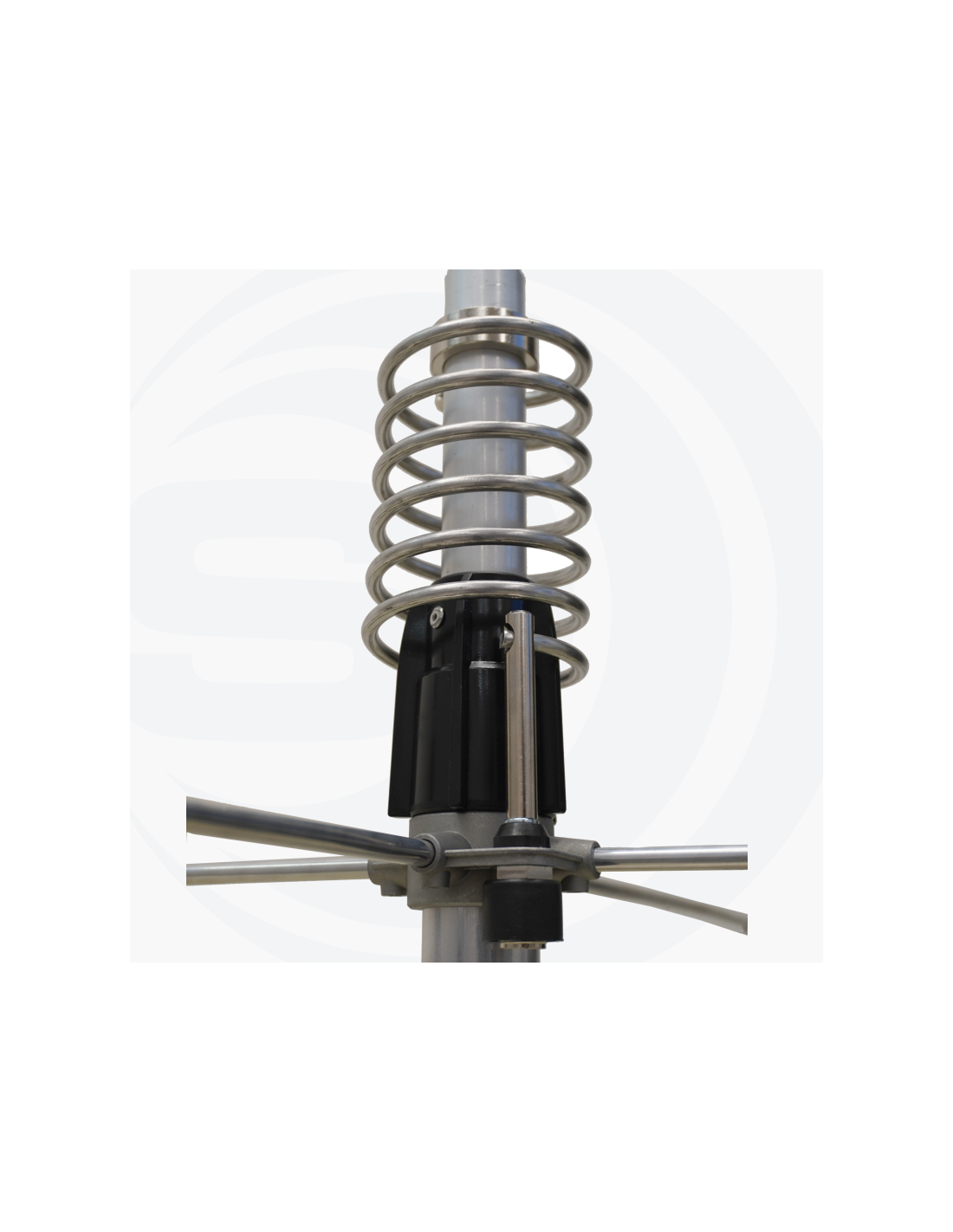

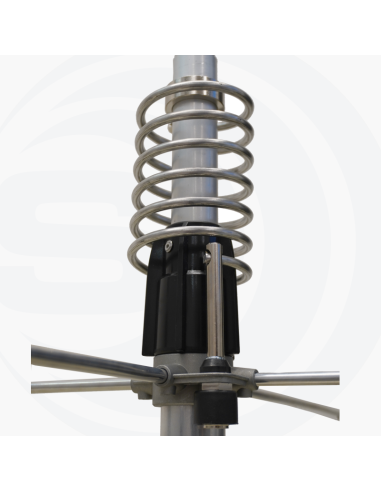

to redesign the plastic antenna insulators which represent the 'heart' of the product. They
have been completely redesigned to make them more robust thanks to the creation of 5
new reinforcing fins and a new sealing system. The plastic material used for molding is a
black polycarbonate, a versatile and robust material that guarantees electrical and
mechanical performances over time, also thanks to the new pre-molding thermal
conditioning. These modifications will guarantee maximum durability of the product over
time.
