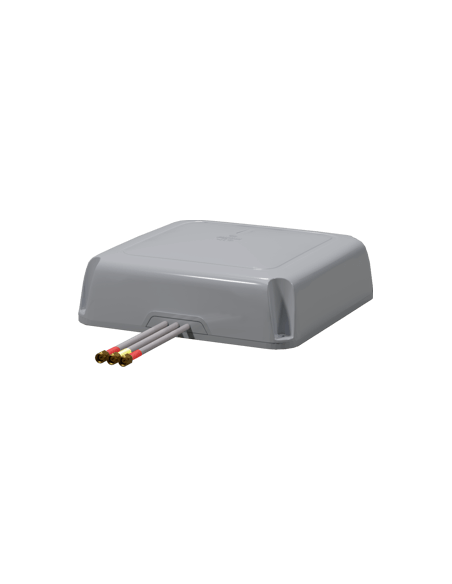

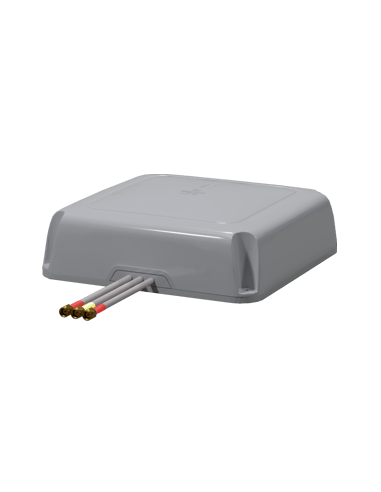

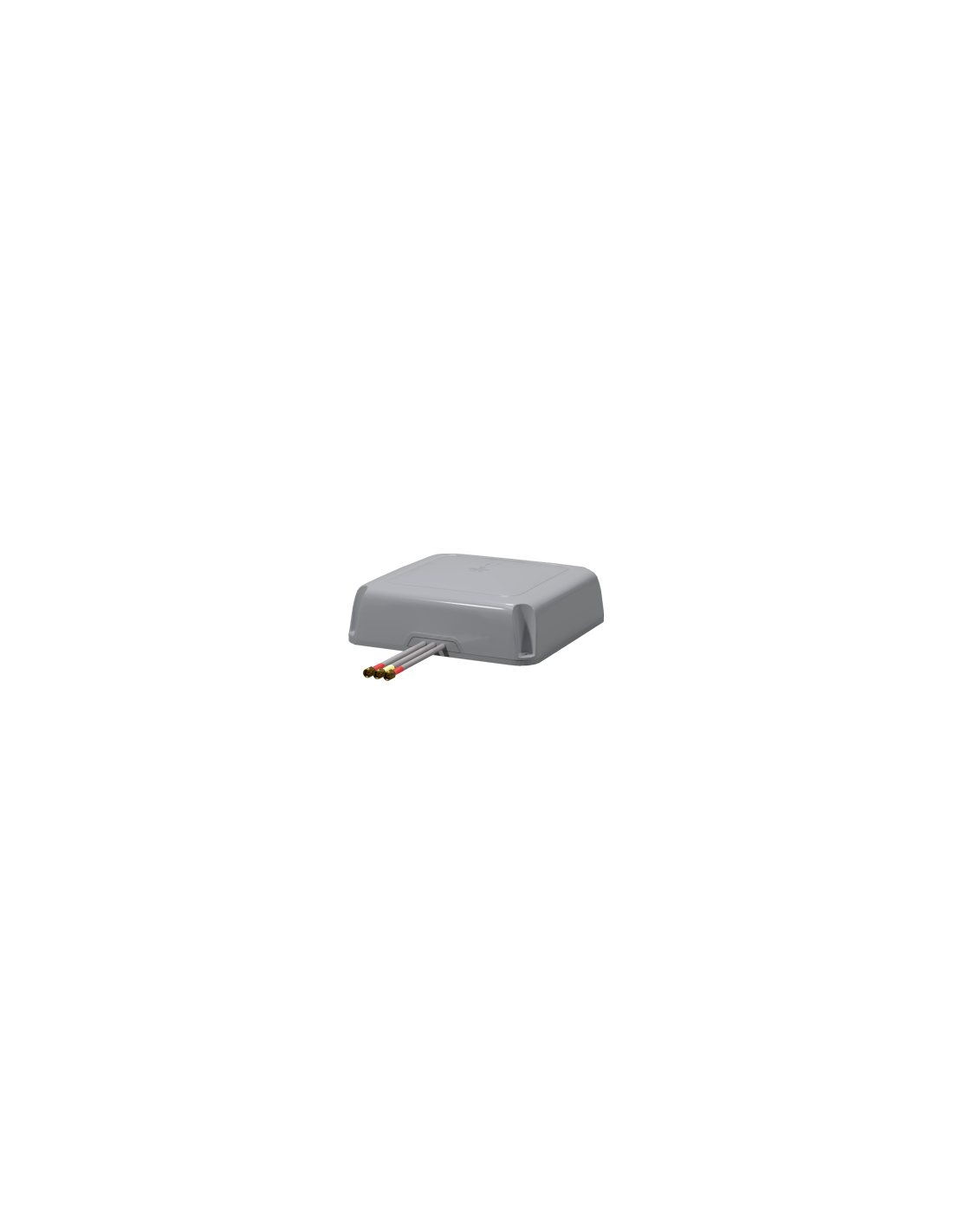

LPA 5G SIDE MIMO/WLAN

ANTENNE FIXE WLAN-CELLULAIRE

5G MiMo 2x: 698-960 MHz & 1.71- 3.8 GHz (2G, 3G, 4G, 5G)

W-LAN: 2.4-2.485 GHz & 5.15-6 GHz (W-Lan Dual band) /

4G-LTE, 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, WiFi-5GHz /

62 x 200 x 200 mm

Type:

Low Profile - Ground plane indépendant

Radiation:

Omnidirectionnelle

Polarisation:

Linéaire vertical

Fréquences:

5G MiMo 2x: 698-960 MHz & 1.71- 3.8 GHz (2G, 3G, 4G, 5G)
W-LAN: 2.4-2.485 GHz & 5.15-6 GHz (W-Lan Dual band)

Systèmes:

	4G-LTE, 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, WiFi-5GHz, V2X

Gain:

5G MiMo 2x:
3 dBi @ 698-960 MHz; 7 dBi @ 1.71-3.8 GHz
W-LAN:
3 dBi @ 2.4-2.485 GHz; 7 dBi @ 5.15-6 GHz

Puissance Max:

	10 Watts

Câble:

Connecteur:

2 x SMA-male, SMA-male Reverse polarity

Typical Efficiency:	5G MiMo 2x: > 80 % @ 698-960 MHz; > 85 % @ 1.71-3.8 GHz; W-LAN: > 90 %
Correlation Coefficient:	5G MiMo 2x: < 0.05

Matériaux:	Laiton, thermoplastique stabilisé aux UV, circuit imprimé
Dimensions (approx):	62 x 200 x 200 mm / 0.2 x 0.66 x 0.66 ft
Poids (approx):	400 gr / 0.88 lb
Montage:	à perçage / sur plafond
